Home >> Buick >> 2002 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data List >> Electronic Brake Control Module (EBCM)

Electronic Brake Control Module (EBCM)

Electronic Brake Control Module (EBCM)

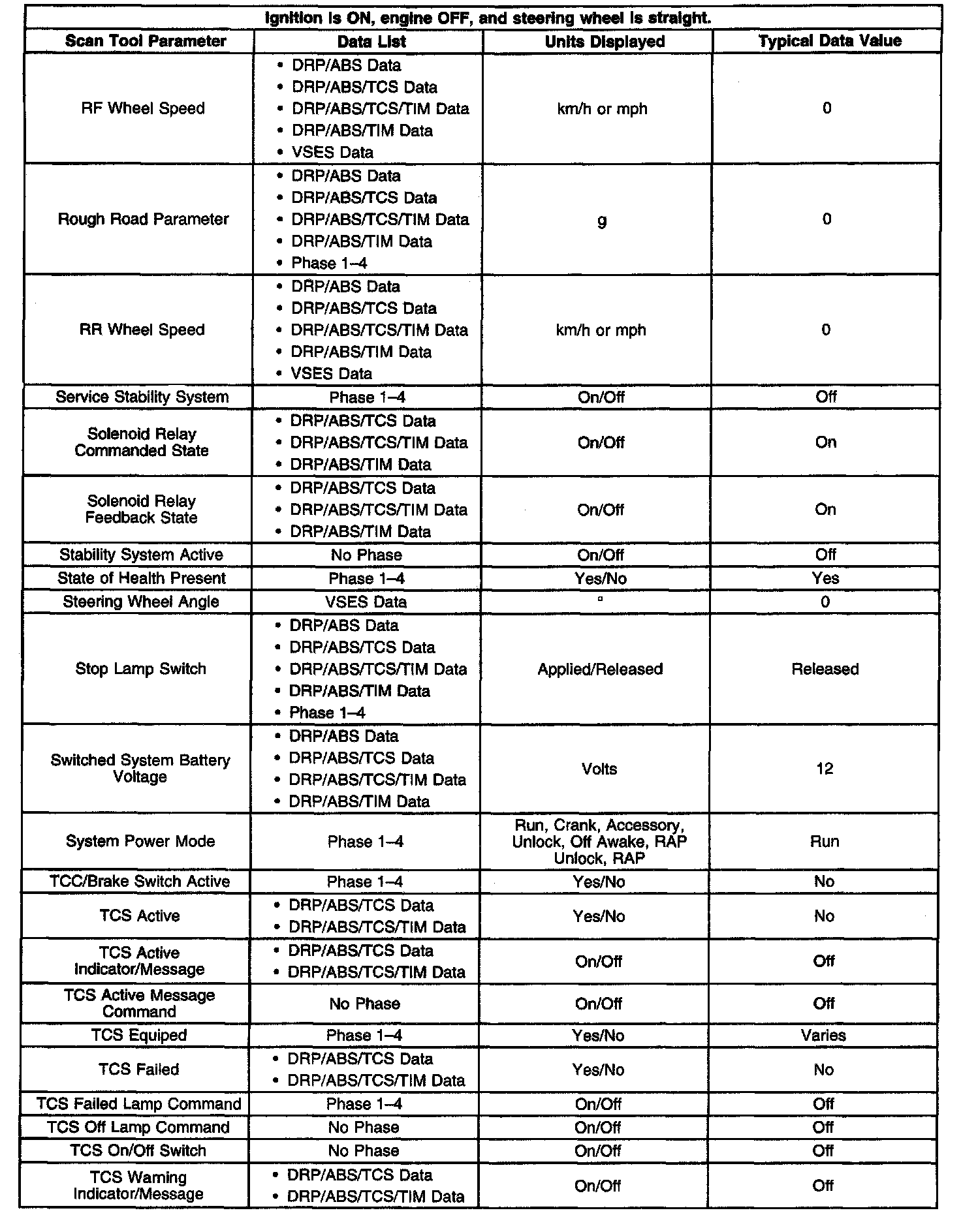

Part 1 of 4

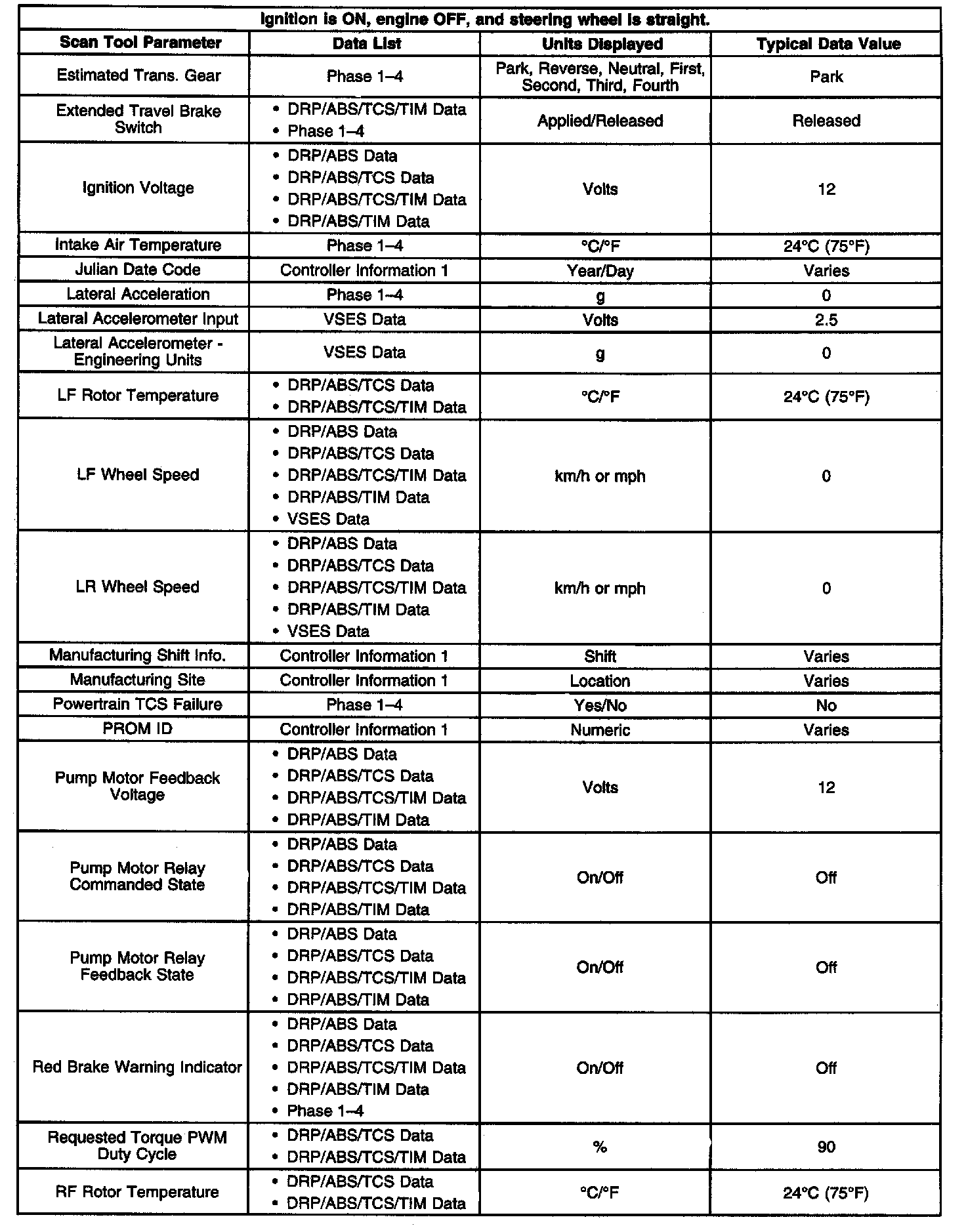

Part 2 of 4

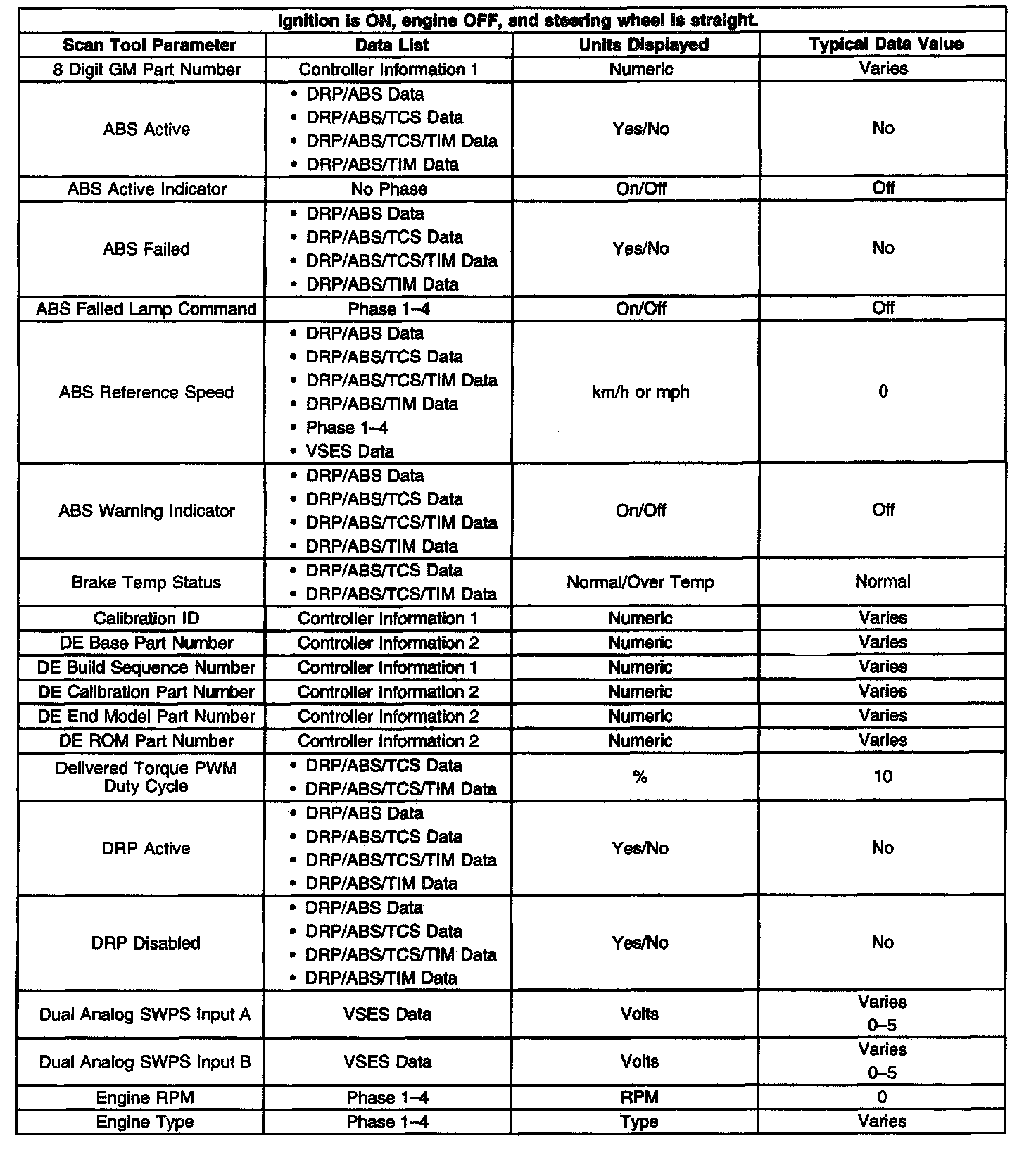

Part 3 of 4

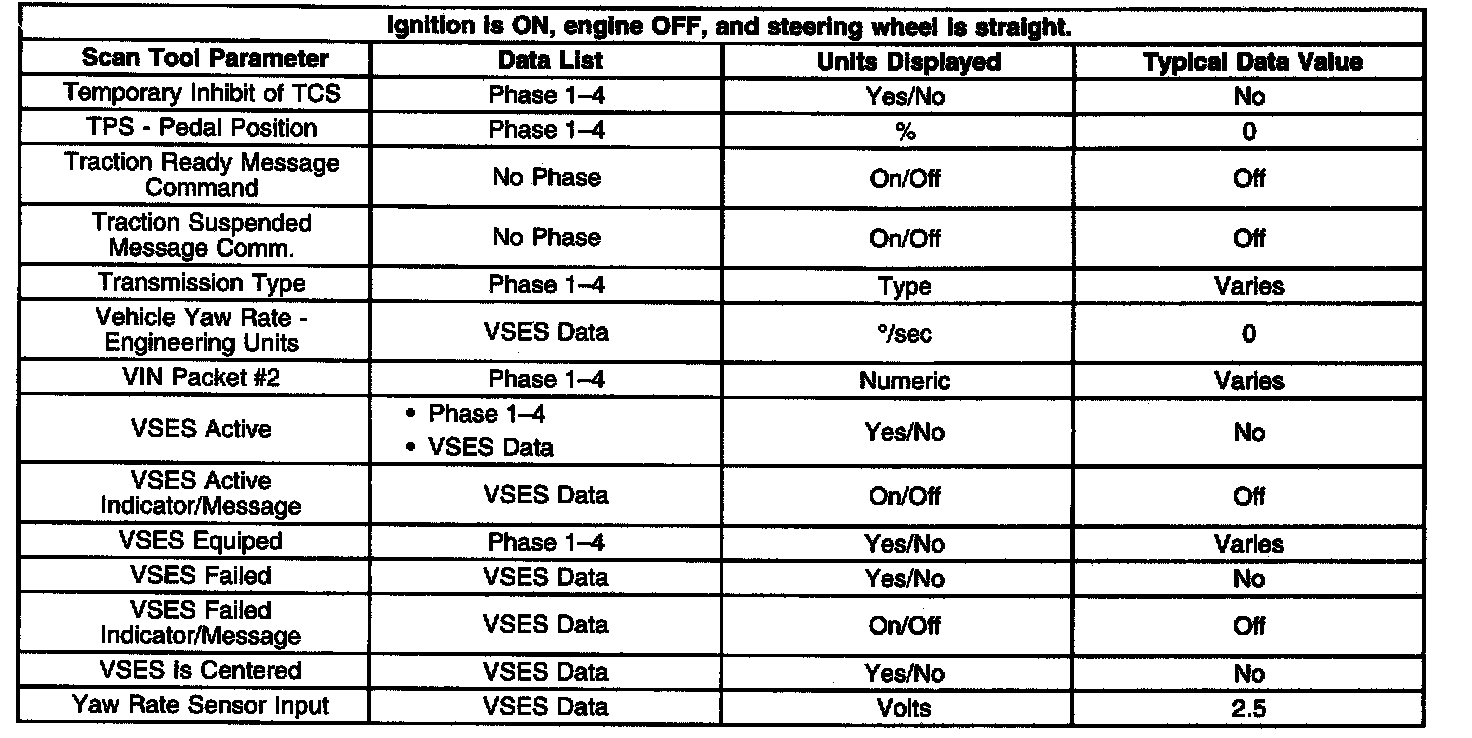

Part 4 of 4
