Cruise Control Module, Secondary AIR Pump Motor and VSS
Cruise Control Module, Secondary AIR Pump Motor and VSS

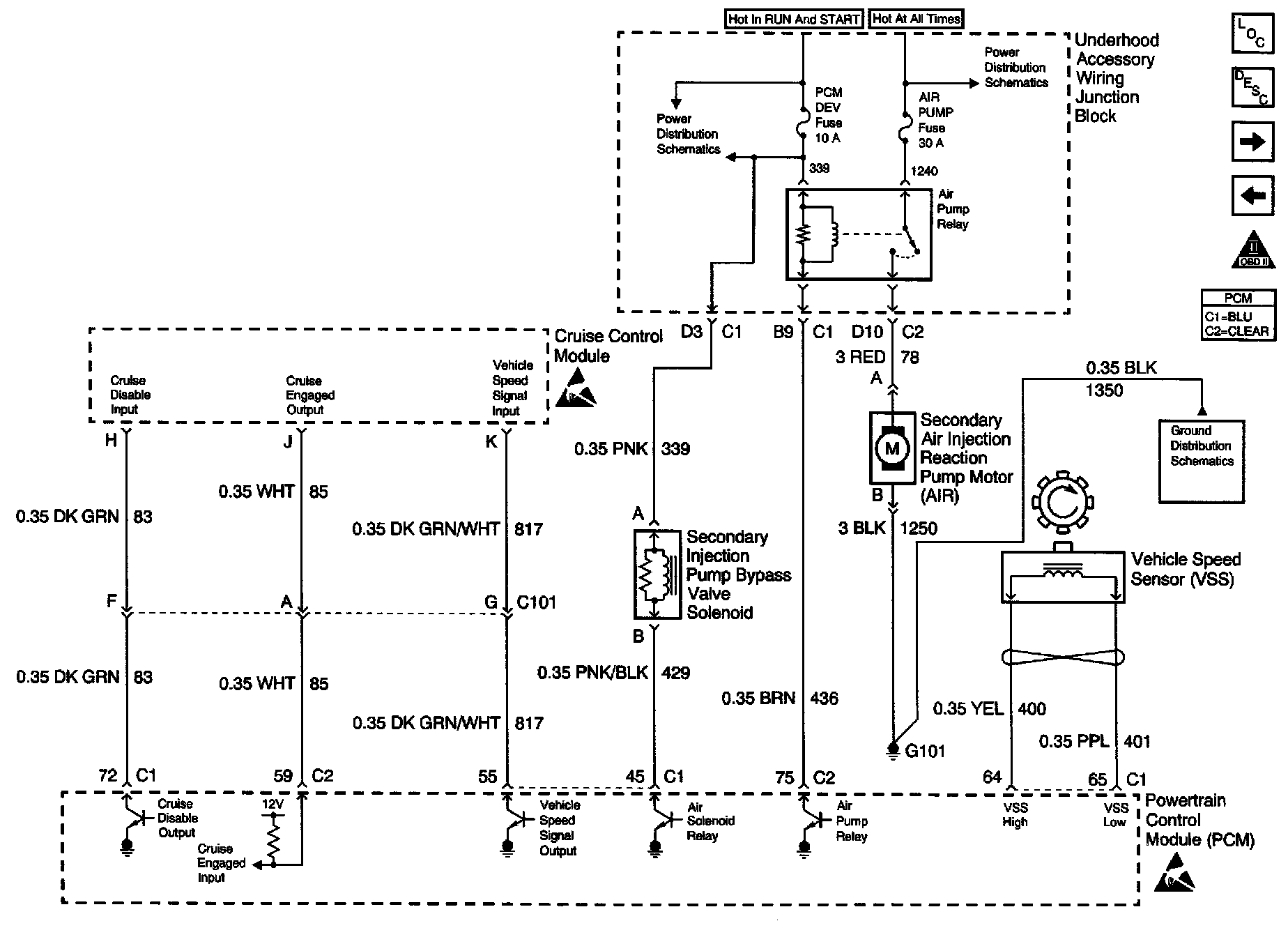

Engine Controls Schematics: Cruise Control Module, Secondary AIR Reaction Pump Motor and VSS:
