Home >> Buick >> 1993 >> LeSabre V6-231 3.8L VIN L SFI >> Repair and Diagnosis >> Diagrams >> Components >> Lighting and Horns >> Lamp Control Module

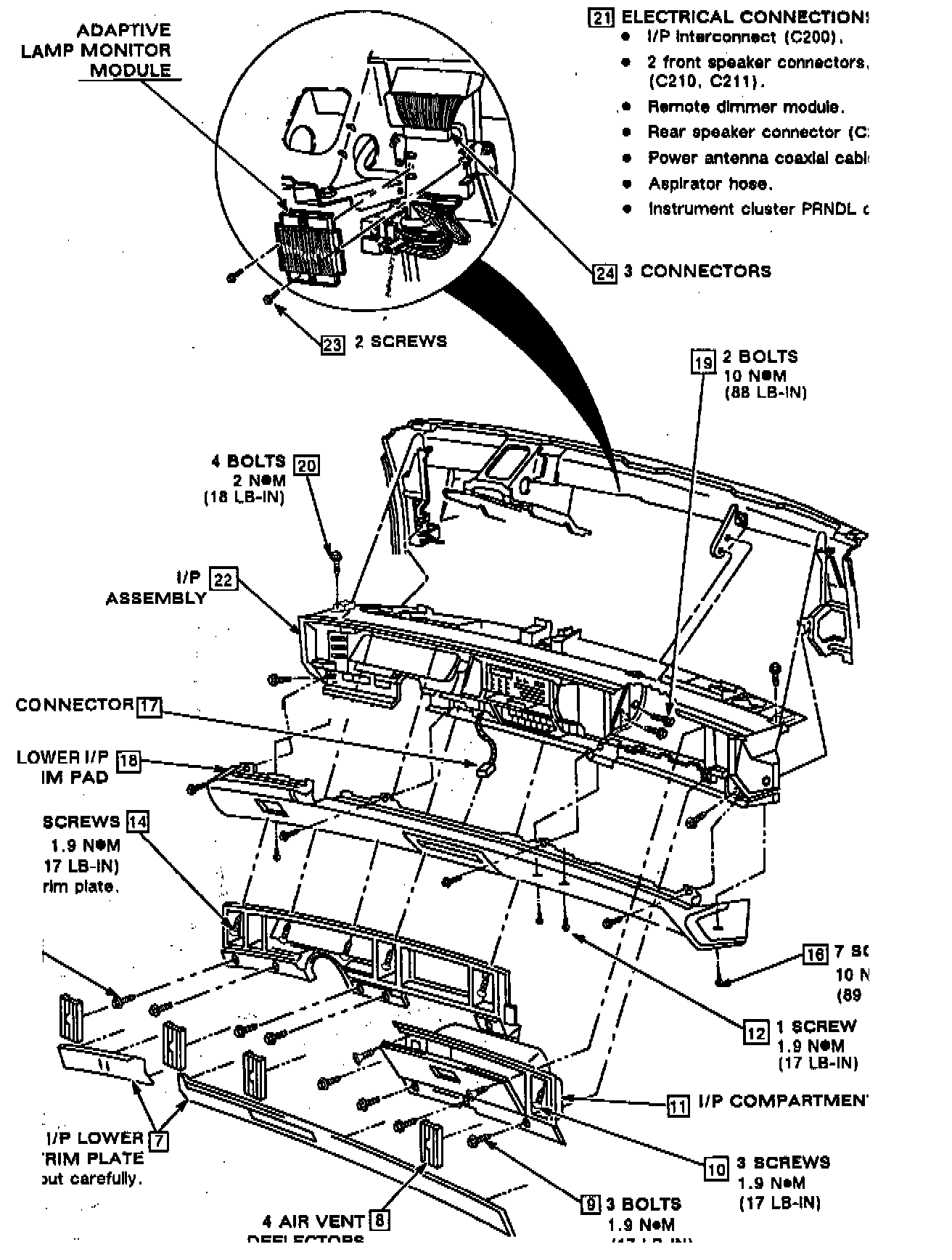

Lamp Control Module



System Locator: Lamp Monitor:
