FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Buick
>>
1990
>>
Century L4-151 2.5L VIN R TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Fuel Filter
Fuel Filter

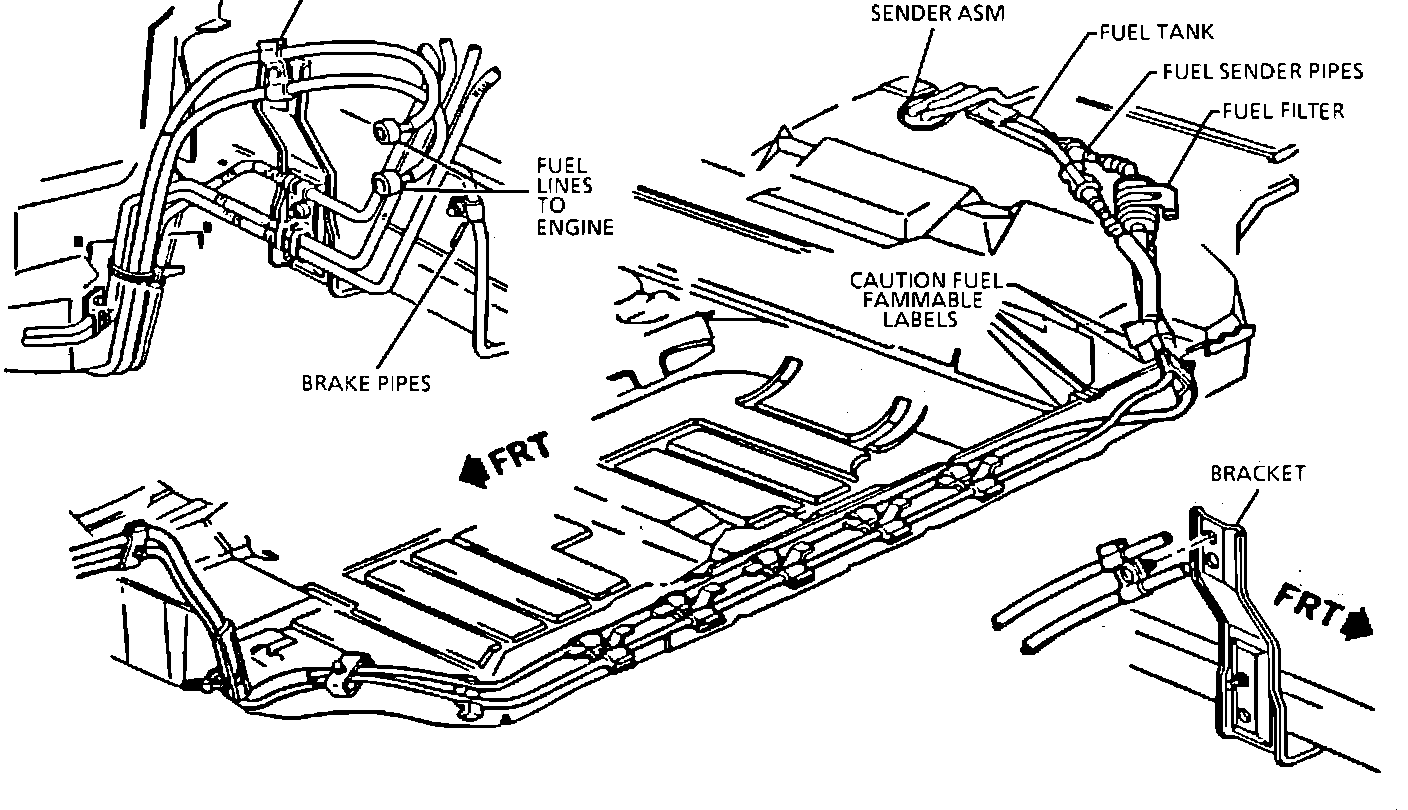

Fuel Lines - Front And View:
In Line Fuel Filter:
