Electronic/Powertrain Control Module (ECM/PCM)

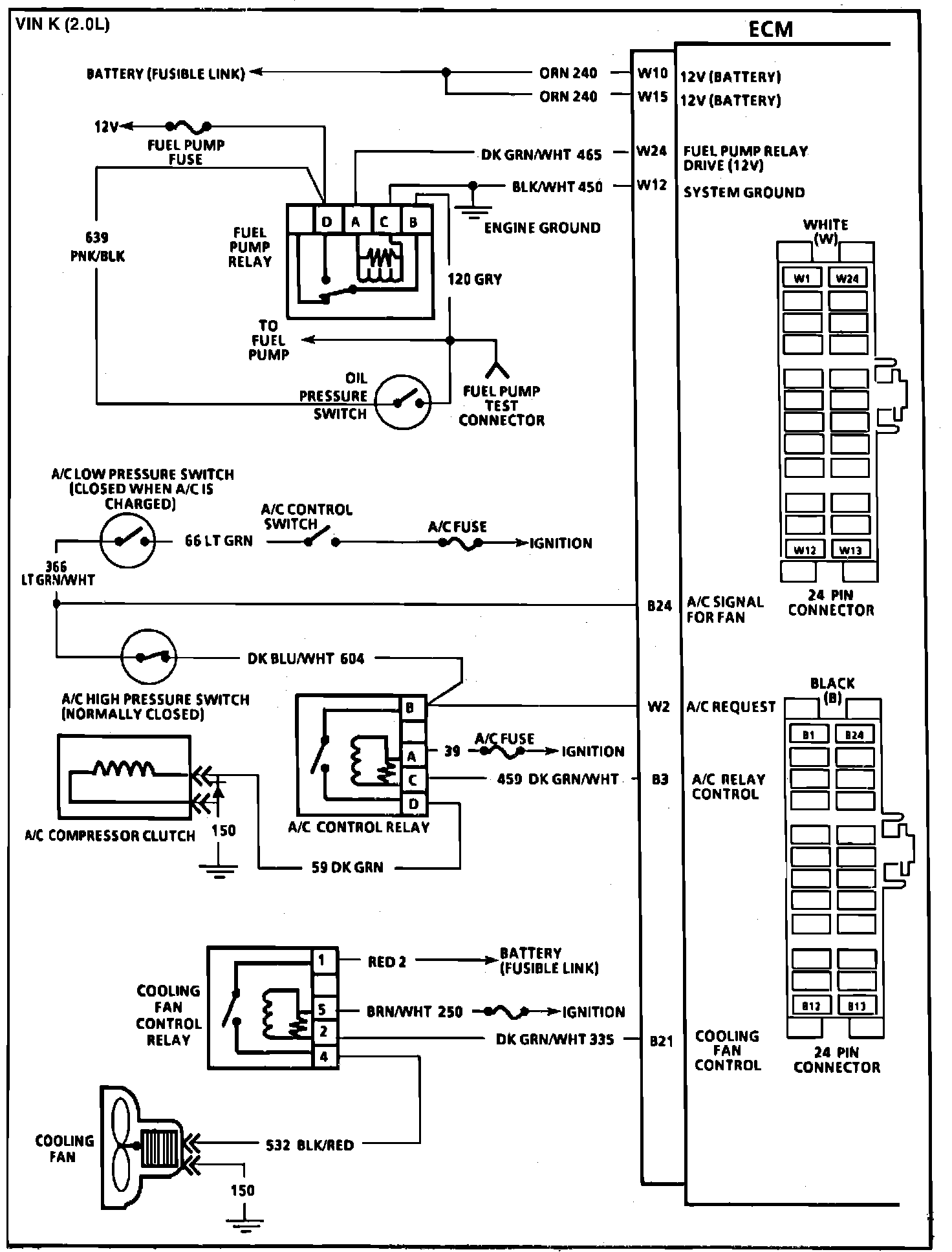

Fig. 079 ECM Wiring Diagrams (1 of 3):

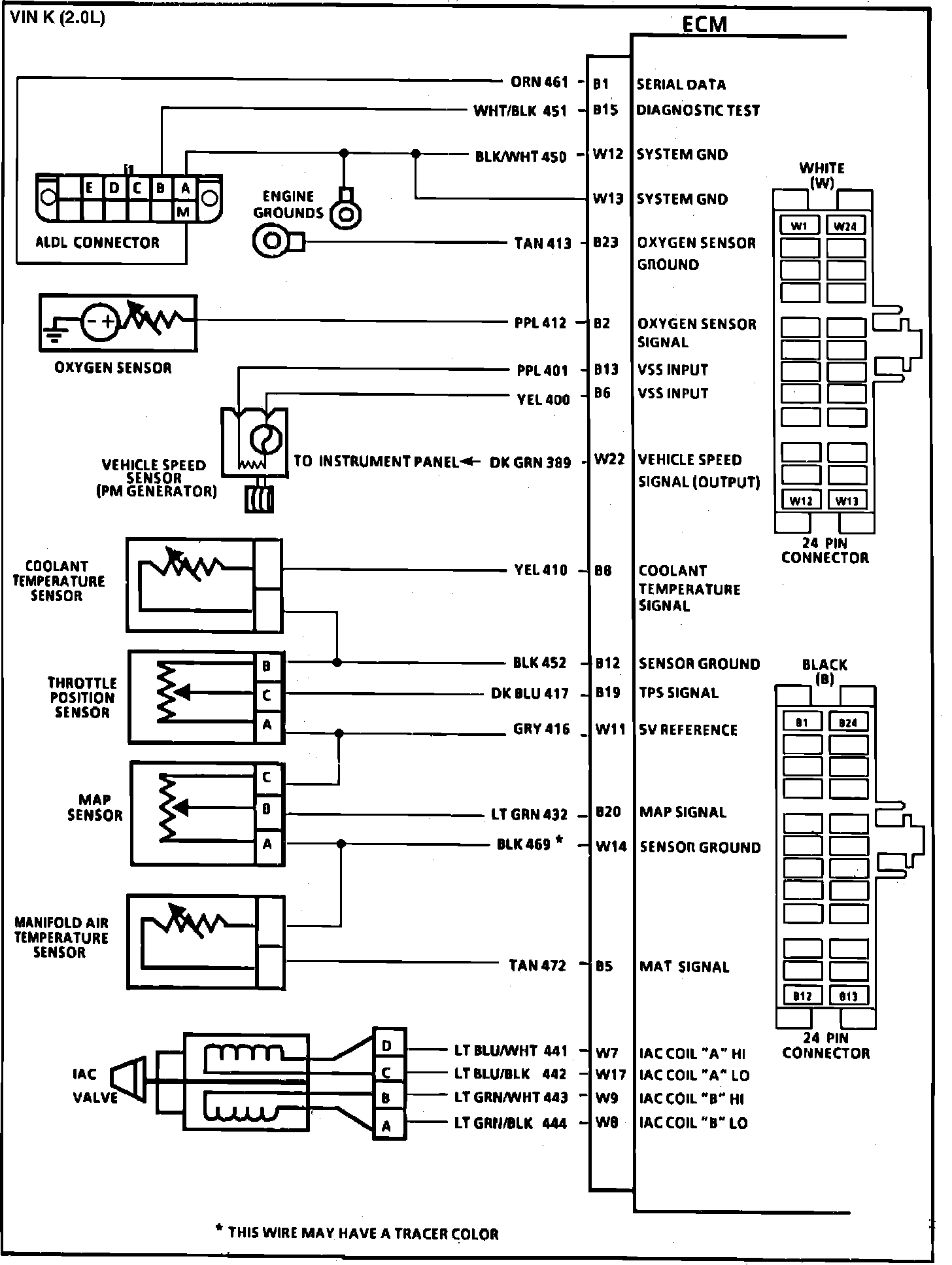

Fig. 080 ECM Wiring Diagrams (2 of 3):

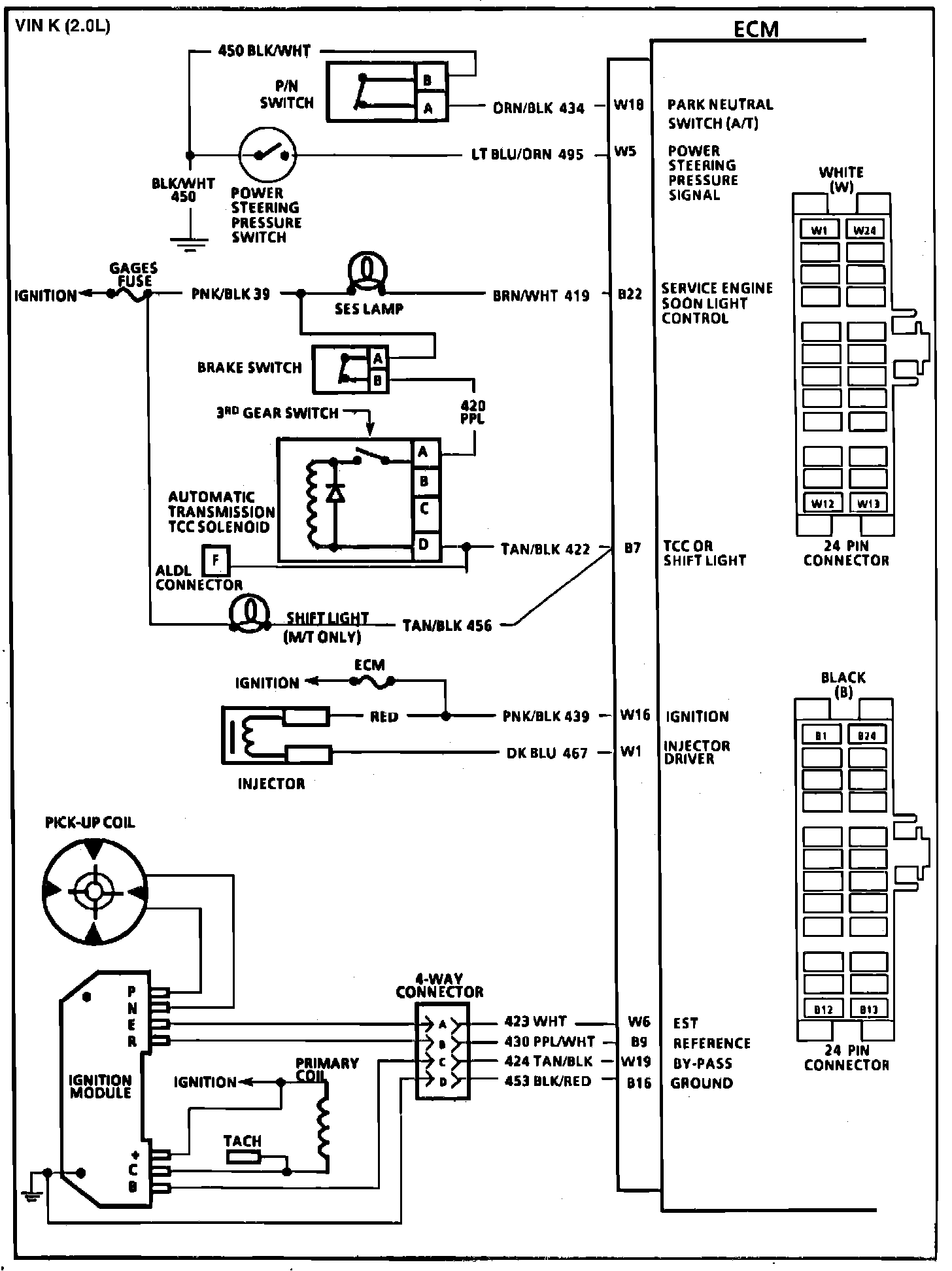

Fig. 081 ECM Wiring Diagrams (3 of 3):
