Home >> Buick Truck >> 2006 >> Terraza AWD V6-3.9L VIN 1 >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Output Controls

Scan Tool Output Controls

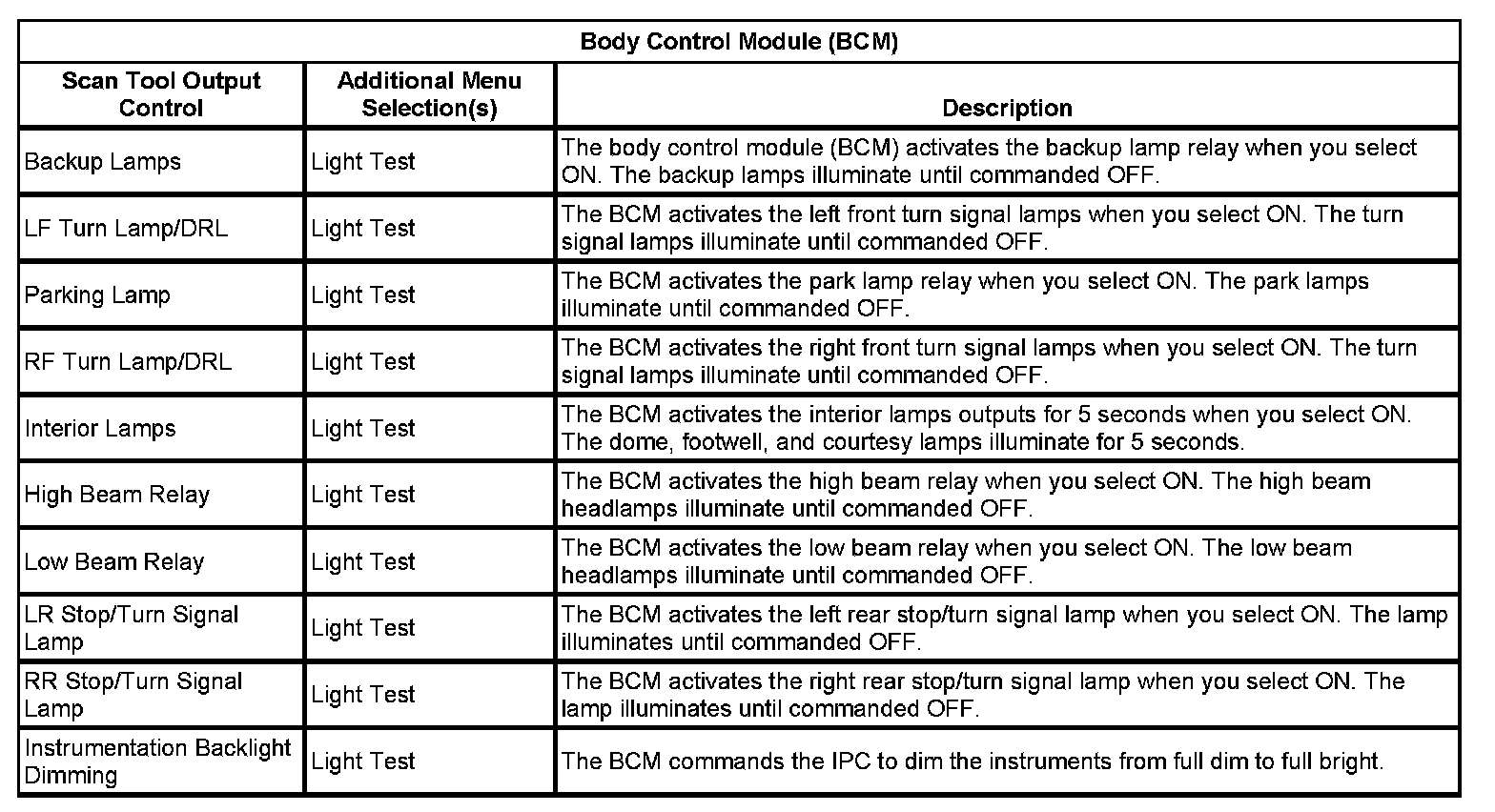

Body Control Module (BCM):
