Steering Angle Sensor, Traction Control

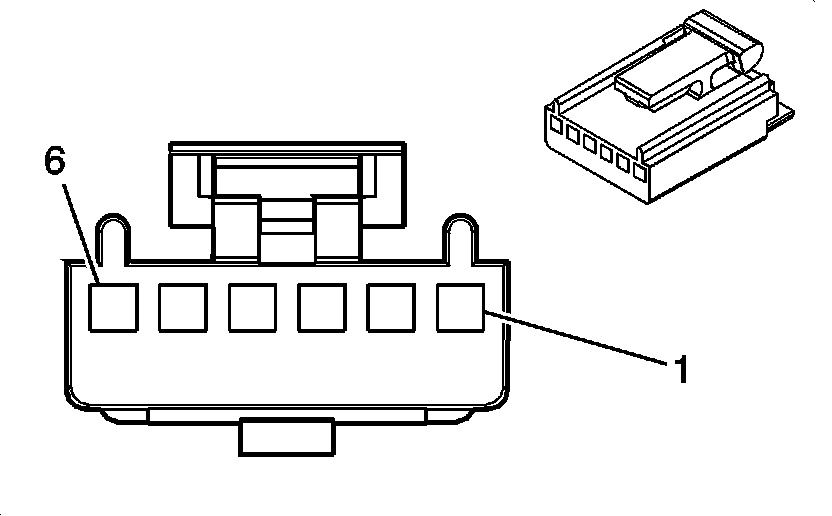

Steering Wheel Speed Position Sensor (JL4)

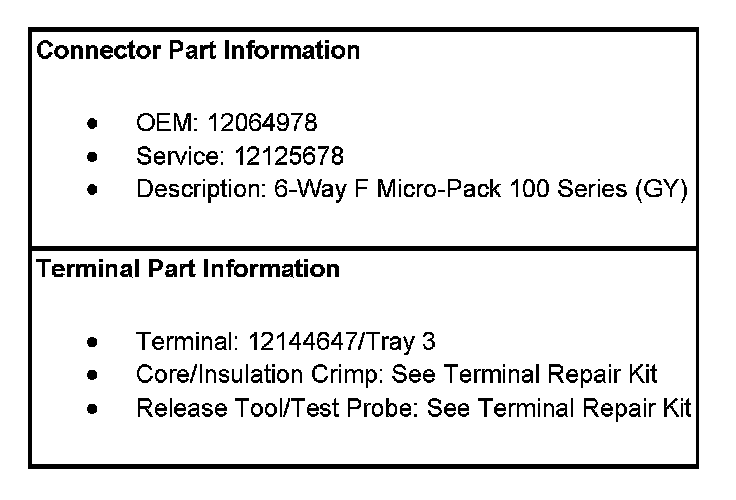

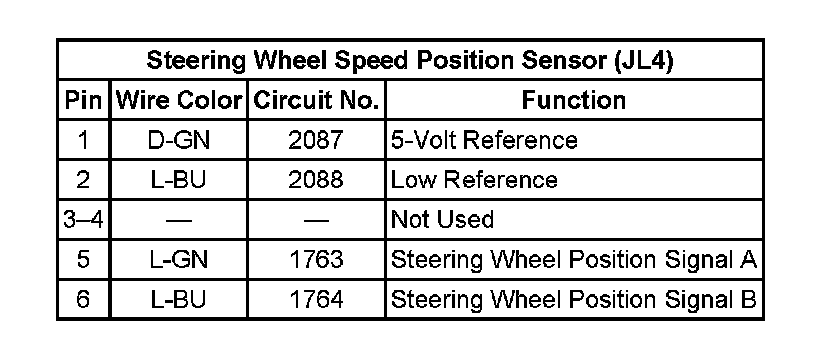

Steering Wheel Speed Position Sensor (JL4):




Steering Wheel Speed Position Sensor (JL4):
