Buick Truck
>>
2006
>>
Terraza AWD V6-3.9L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
>>
Inflatable Restraint Sensing and Diagnostic Module (SDM)
Inflatable Restraint Sensing and Diagnostic Module (SDM)

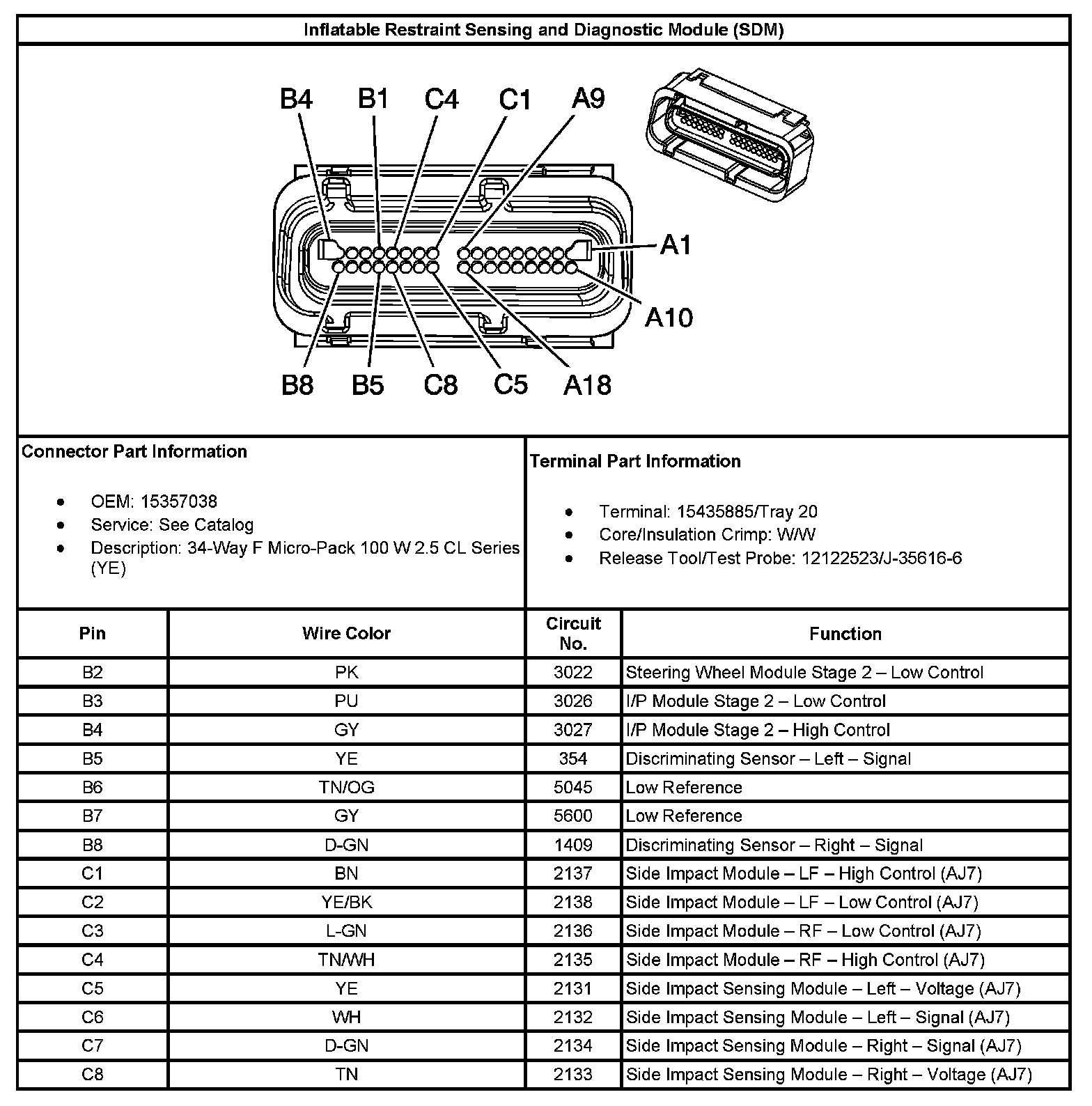

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Part 1):

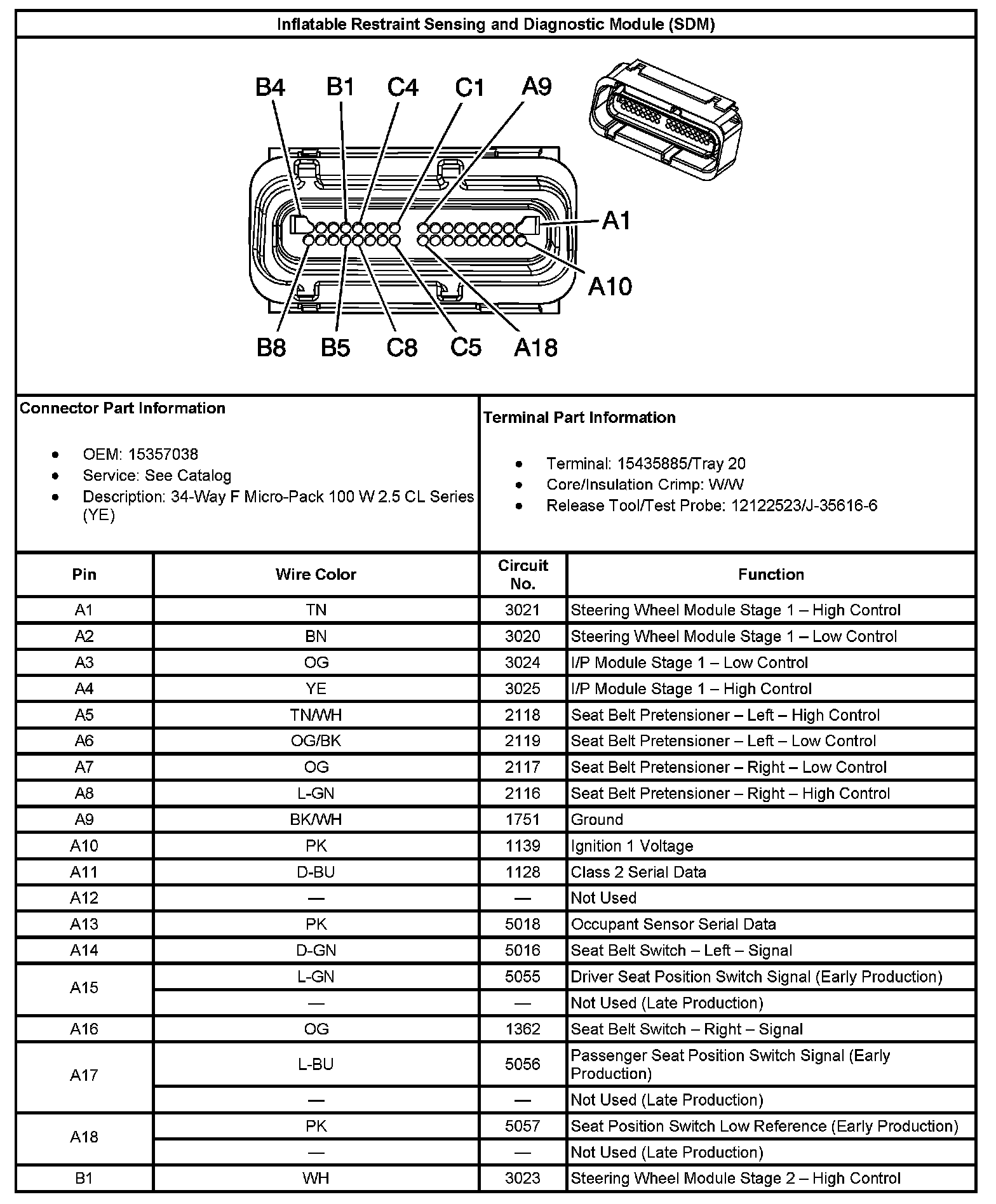

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Part 2):
