Home >> Buick Truck >> 2006 >> Terraza AWD V6-3.9L VIN 1 >> Repair and Diagnosis >> Diagrams >> Components

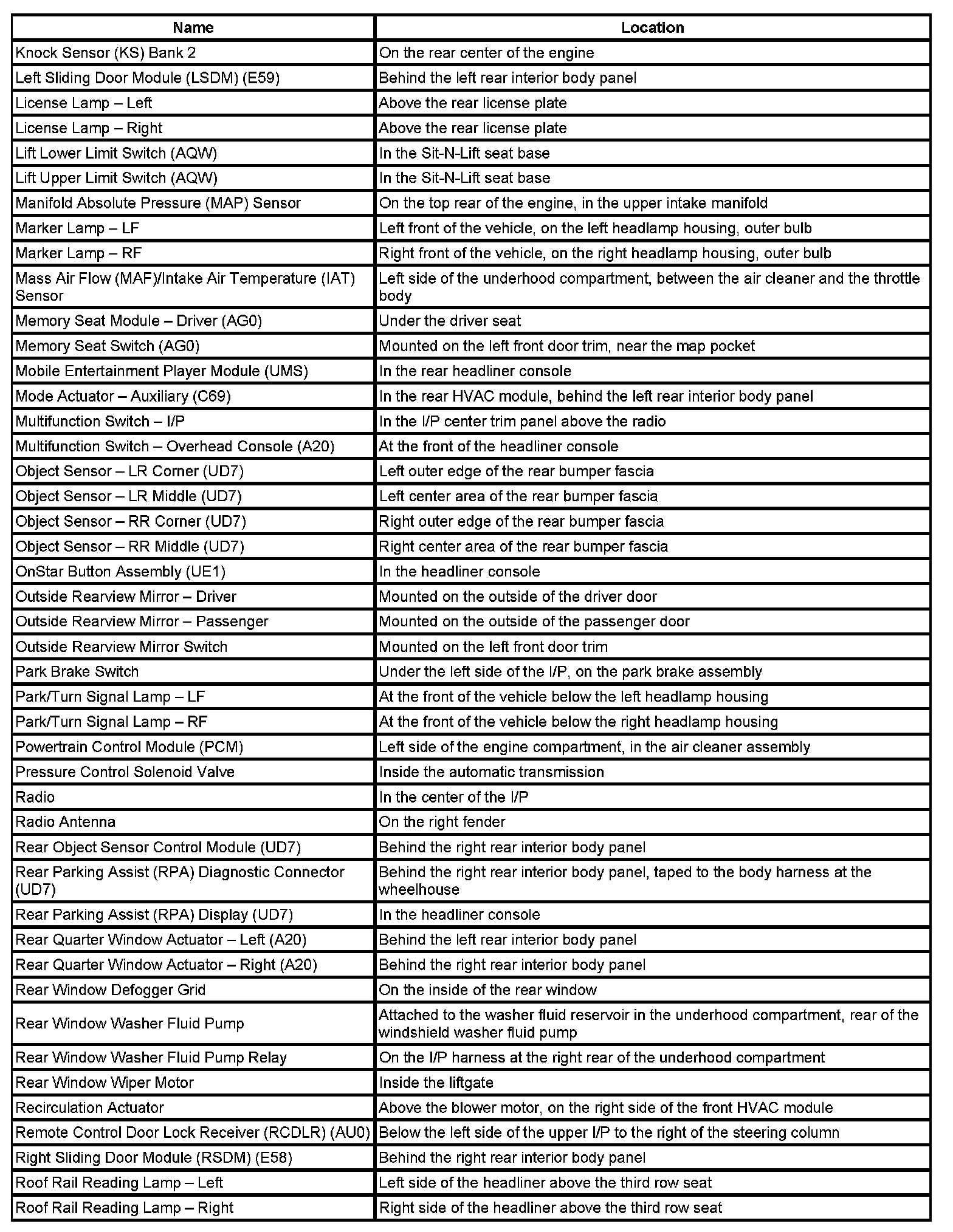

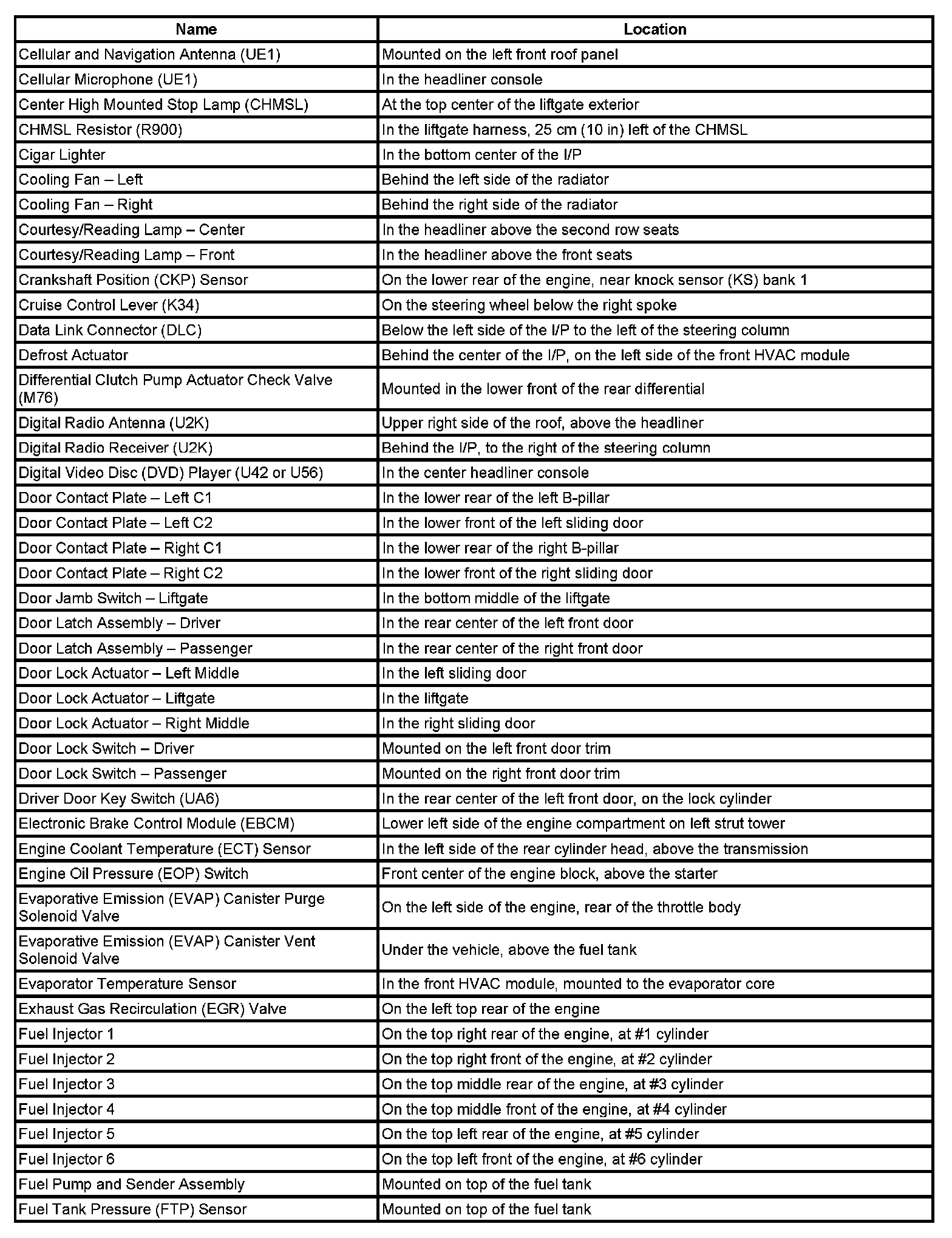

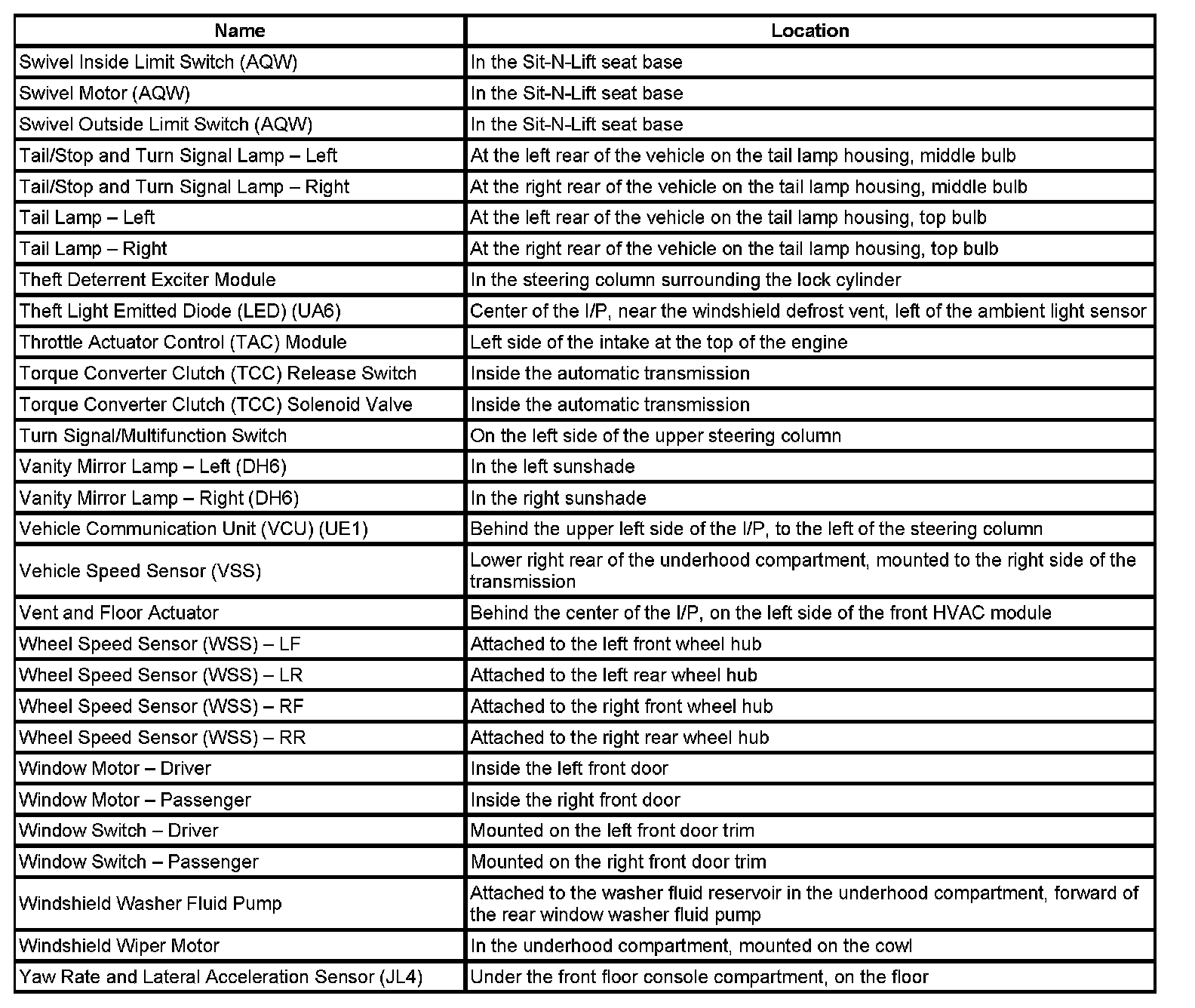

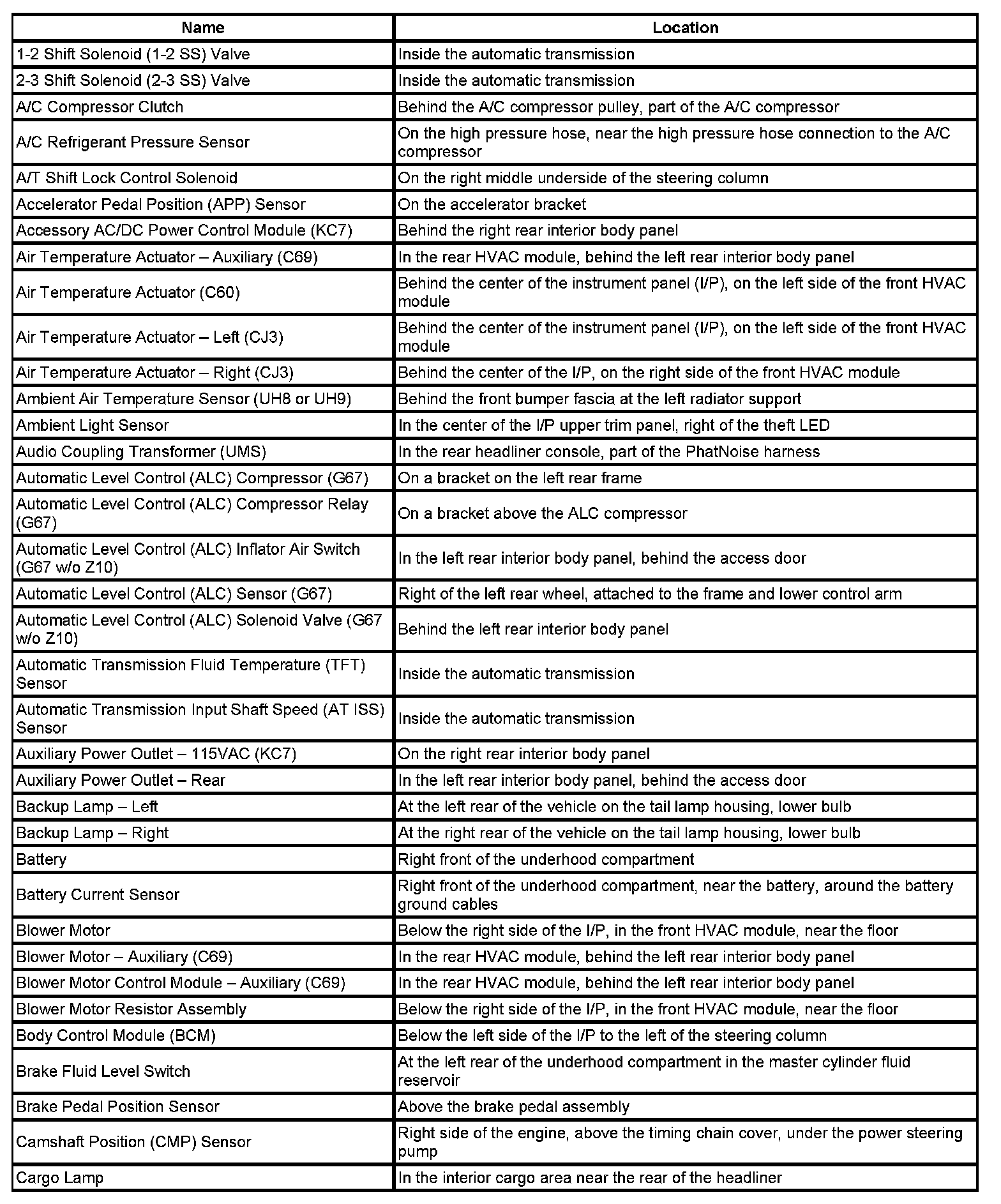

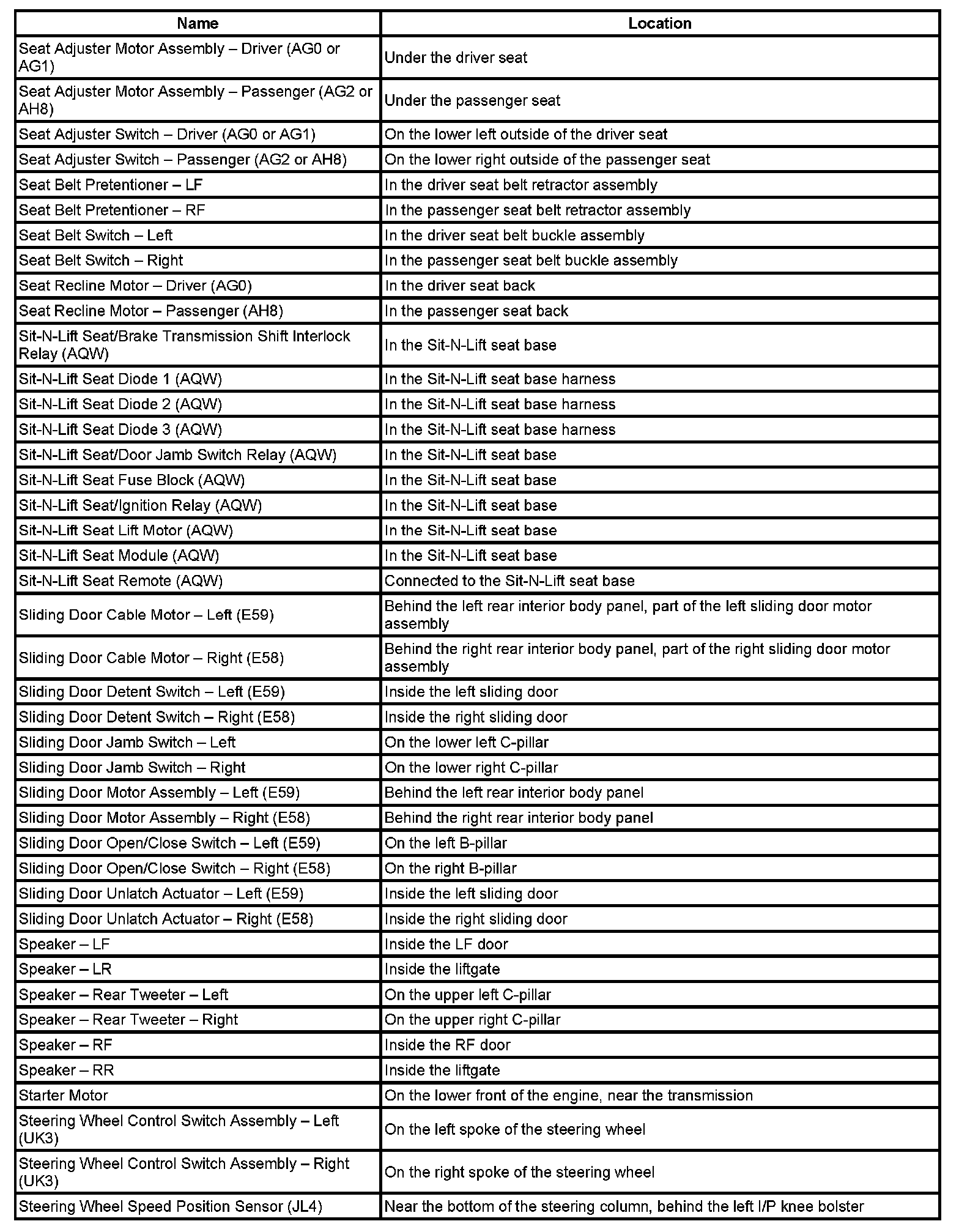

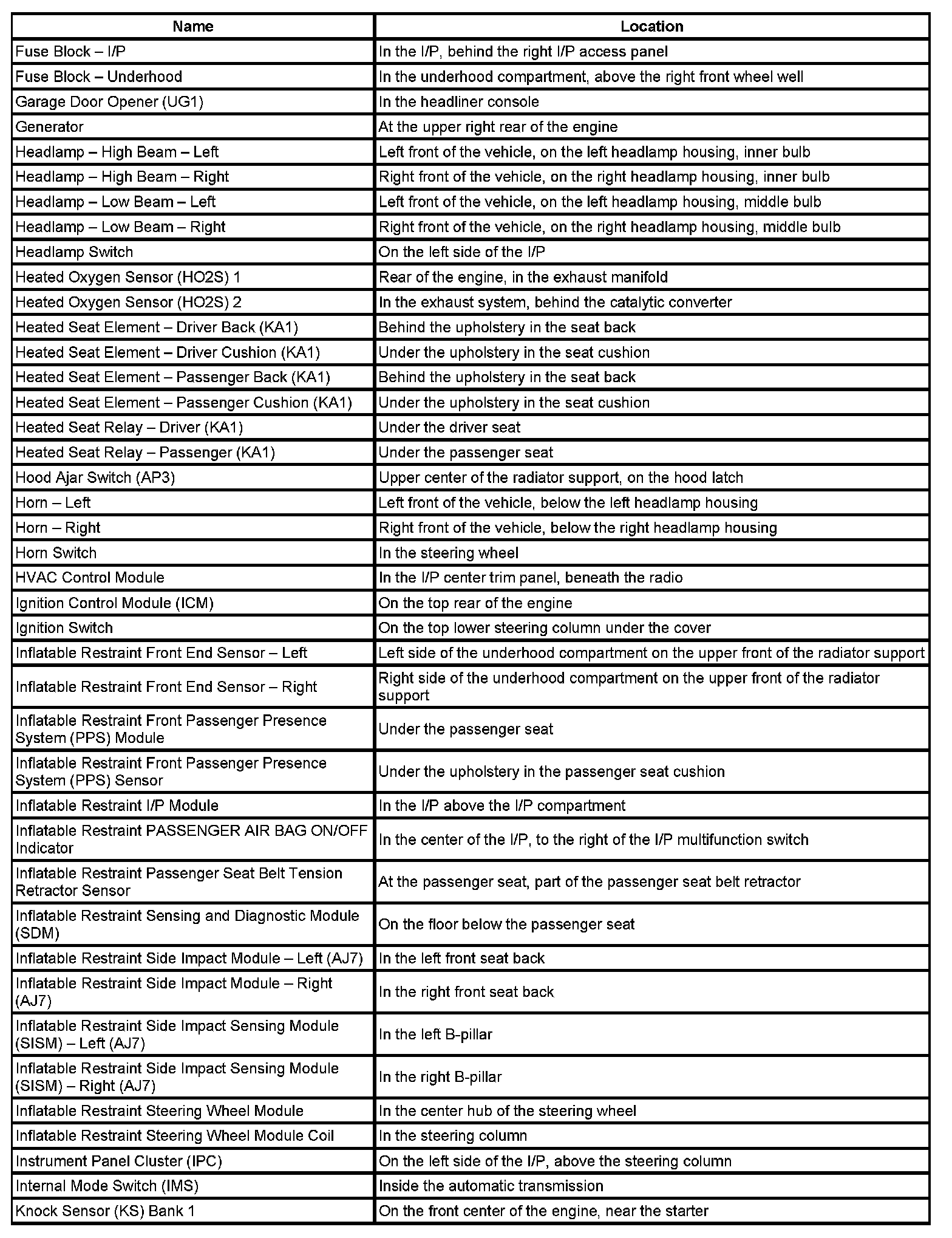

Components



1-2 Sh - Ca:




Ce - Fu:




Fu - Kn:




Kn - Ro:




Se - St:




Sw - Ya:
