Home >> Buick Truck >> 2004 >> Rendezvous AWD V6-3.6L VIN 7 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations

Control Module HVAC: Locations

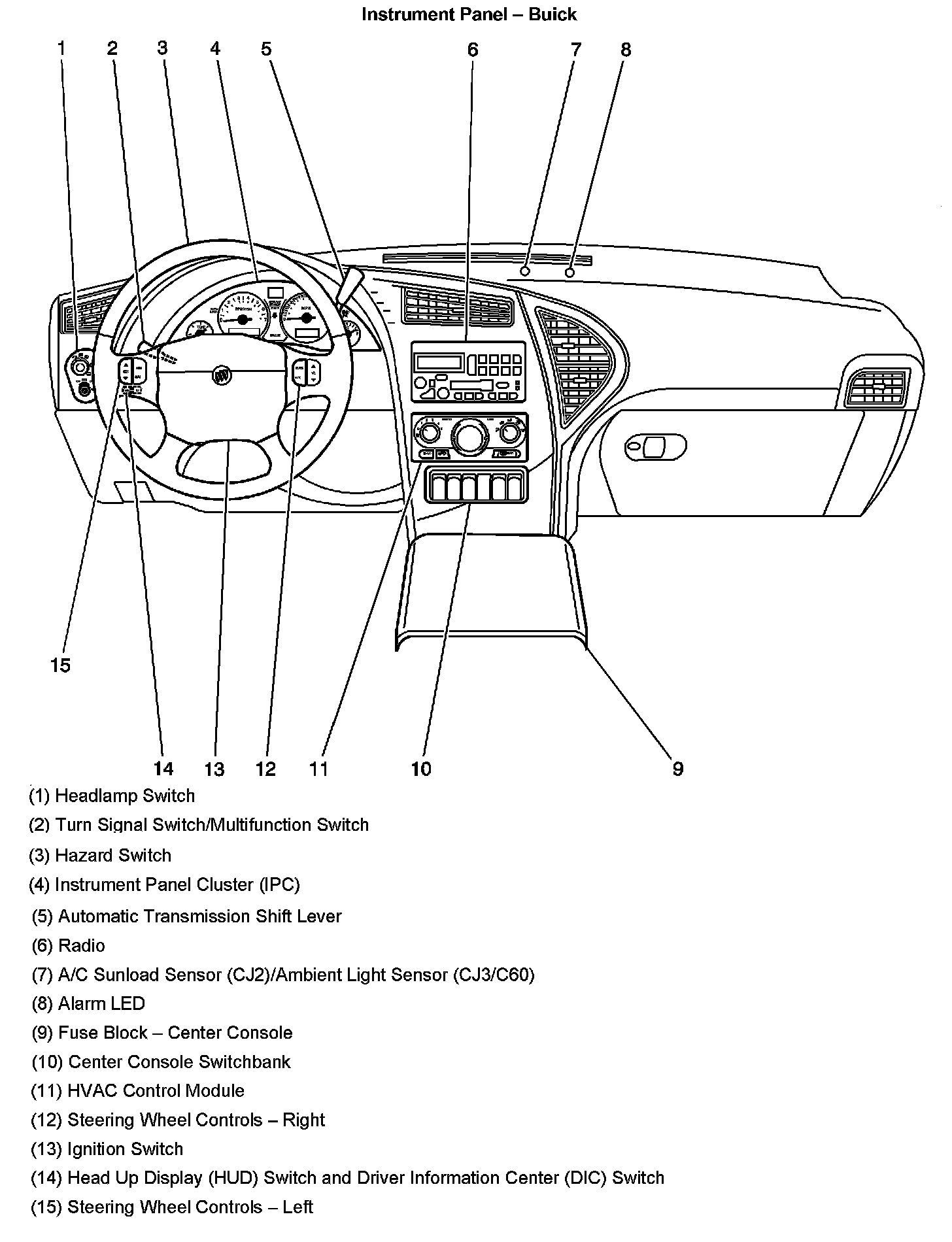

Instrument Panel:

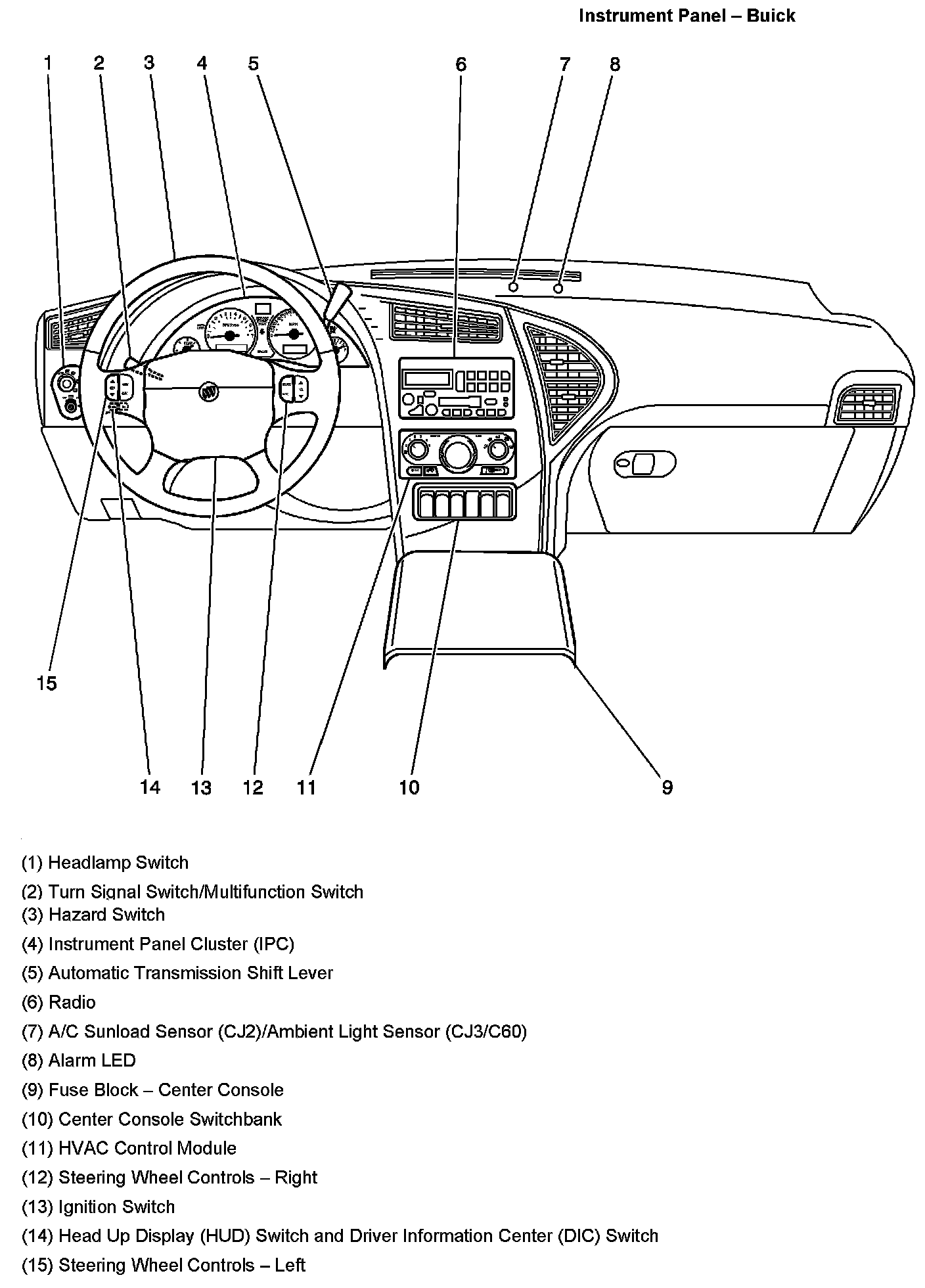

Instrument Panel:

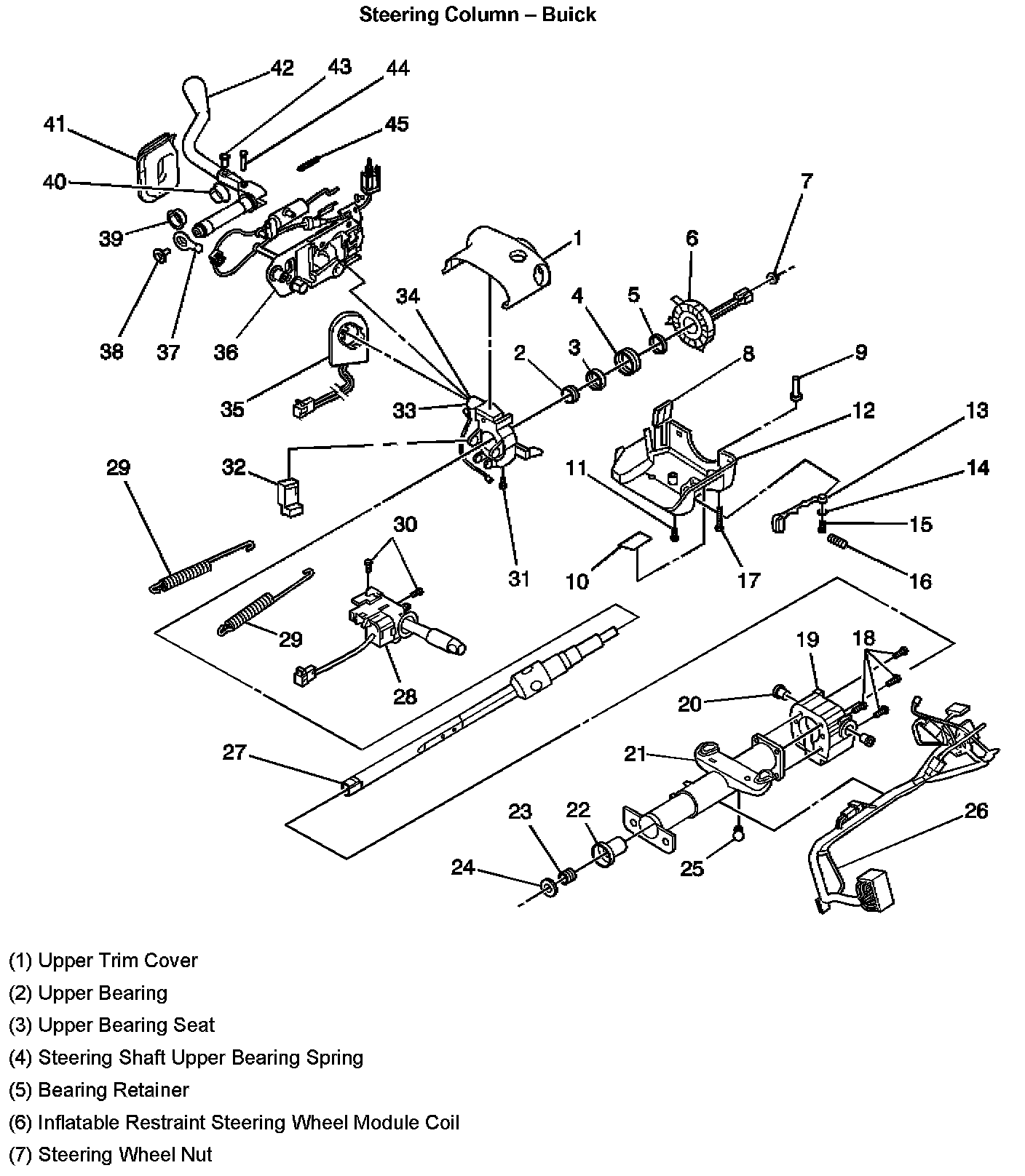

Steering Column:

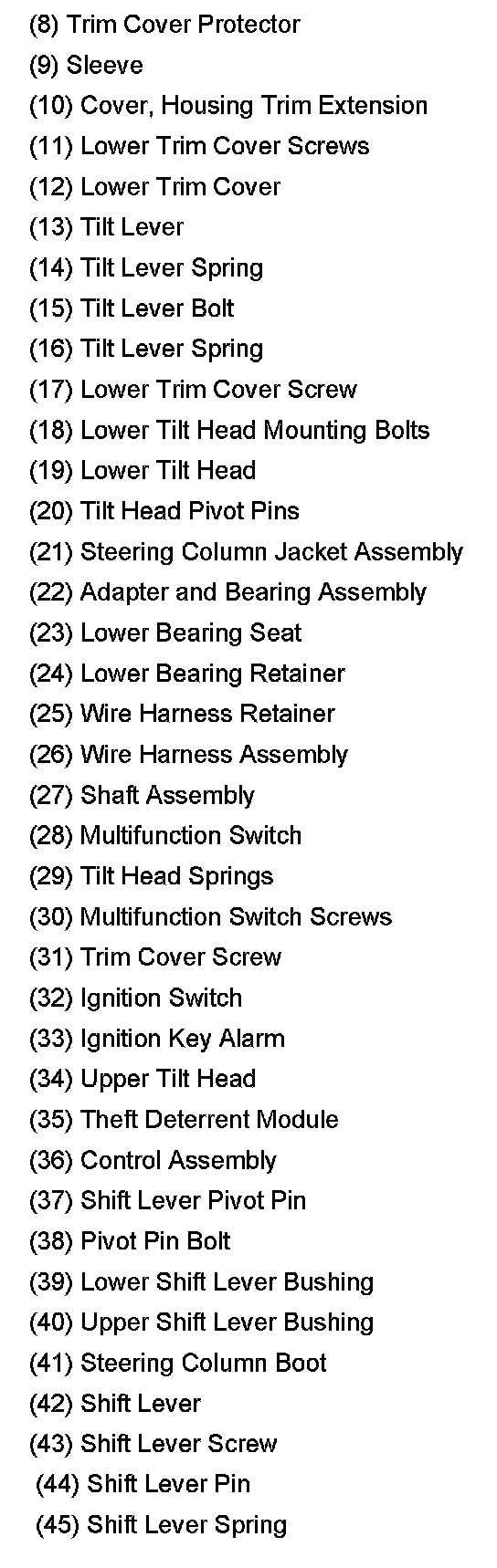

Steering Column Part 2:

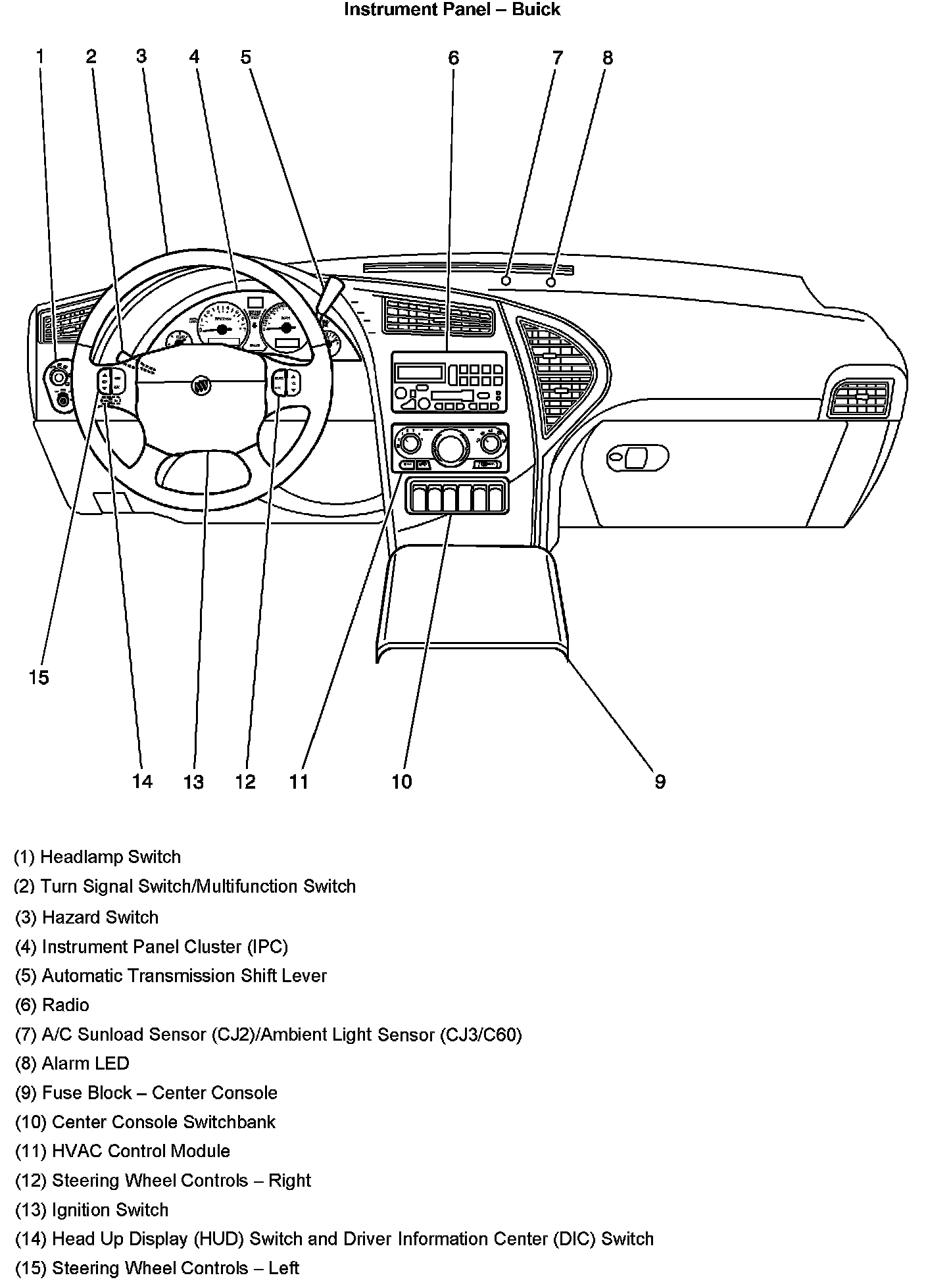

Instrument Panel:
