Trunk / Liftgate Latch: Service and Repair

51 24 105 Removing And Installing/Replacing Rear Lid Lock







Necessary preliminary work:
- Remove trim for rear lid

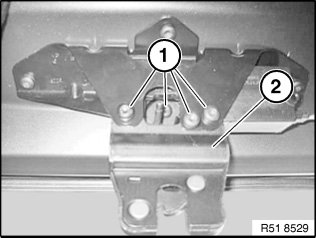

Release screws (1).
Tightening torque 51 24 1AZ.
Feed out lock (2), disconnect plug connection and remove lock (2).
