Trim Panel: Service and Repair

51 43 070 Removing And Installing/Replacing Side Trim Panel, Footwell, On A-Pillar, Left







Necessary preliminary work:
- Remove front door sill cover strip (inside)
- Remove trim panel for pedal mechanism

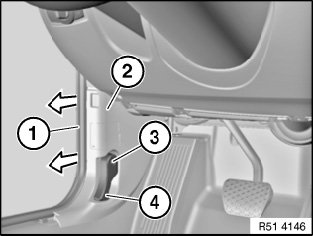

Detach edge protection (1) in area of side trim panel (2).
Release screw (3).
Remove engine compartment lid release lever (4) from side trim panel (2).

Installation note:
Make sure edge protection (1) is correctly seated.

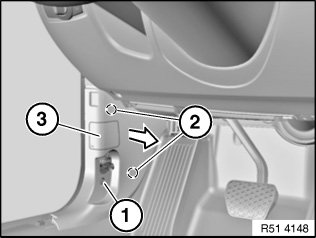

Release screw (1).
Unclip side trim panel (3) in direction of arrow from retaining points (2).
If necessary, disconnect associated plug connection and remove side trim panel (3).







Installation note:

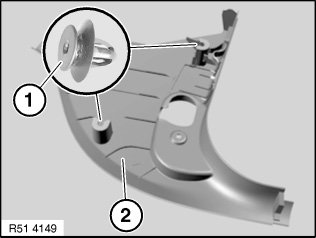

If necessary, lever out clamps (1) remaining in bore.

Replace faulty clips (1).
Position side trim panel (2) pre-installed with clips (1) on associated bore holes and clip into place.

Replacement:
Modify rear lid unlocking switch, if applicable.
