Maintenance Required Lamp/Indicator: Service and Repair

00... CBS Reset


Important!
It is always recommended to reset the CBS jobs via the diagnosis system. The CBS service jobs can be reset in the vehicle with the on-board computer button on the turn signal/high beam switch. It is only possible to code the statutory intervals specific to individual countries with the diagnosis system.

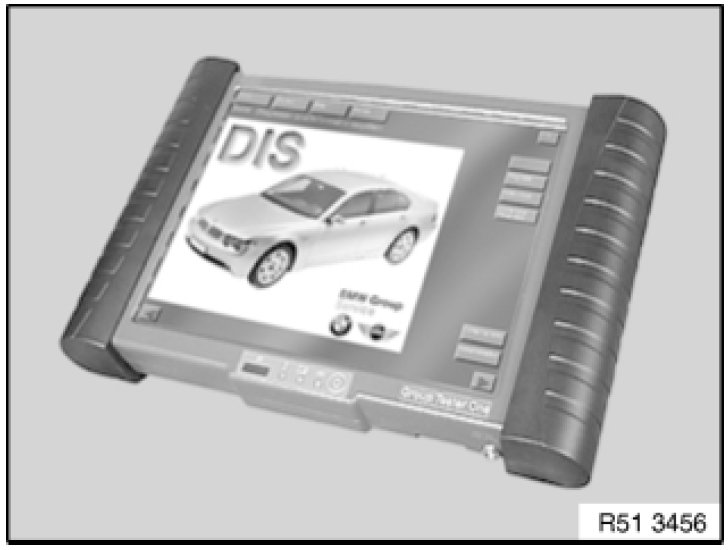

CBS Reset With Diagnosis System

Important!
To be able to check and/or correct the car's on-board date properly, the diagnosis system requires the correctly set tester system date!
The jobs may only be reset after the service measure has been completed.
The brake pads can only be reset with a new brake pad wear sensor.





The CBS jobs can be reset via the diagnosis system on the following path:
=>Diagnosis =>Function Selection =>Service Functions =>Maintenance =>CBS reset.

CBS Reset In The Car
On the vehicle, maintenance operations can be reset at the instrument panel. Here the availability of a service job is reset to 100% (corresponding to new part). The availability is an internal computing value (not visible to the operator).
NOTE:
A reset is only possible in the vehicle if there is no Check Control message and if the availability of the service job is below 80%.
On-board date must be correctly set.
Resetting of a service job must always be carried out AFTER a maintenance measure has been completed.
The resetting process is interrupted if the time is exceeded or if a terminal is changed.





Switch the ignition on.

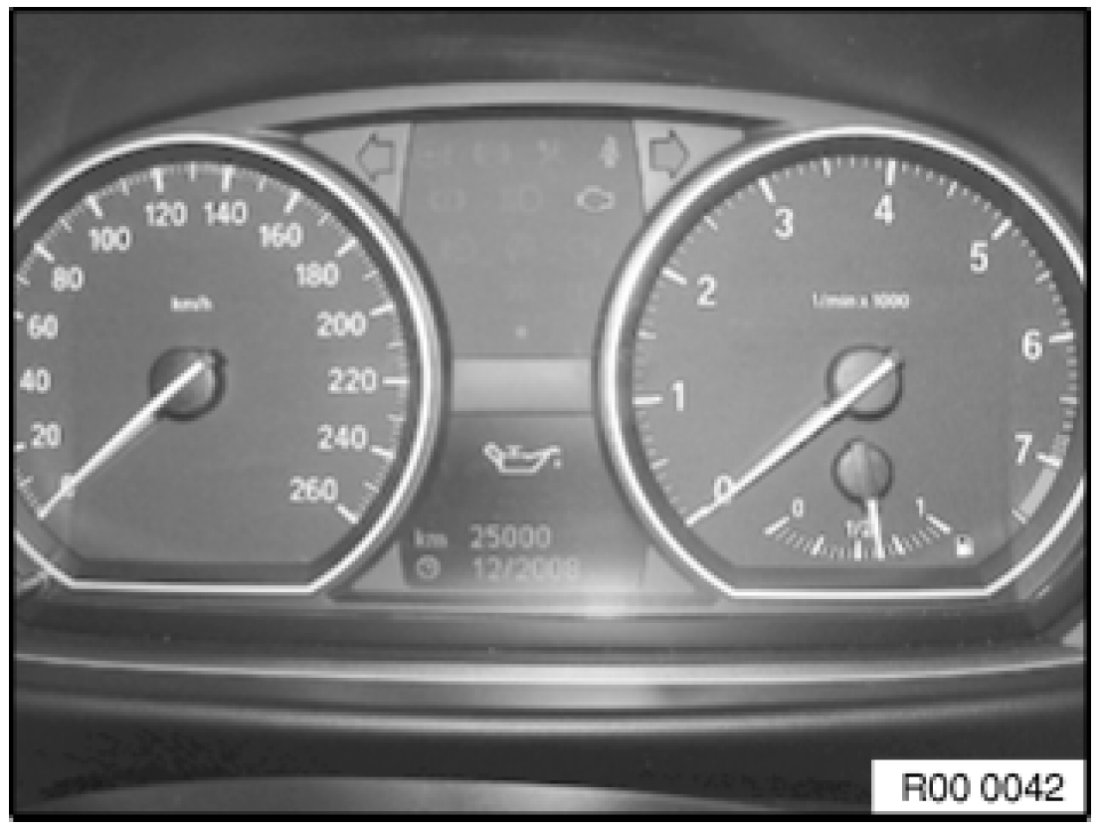

Press and hold the trip distance recorder reset button for 10 seconds until the 1st scope of maintenance work appears in the LCD display.

The upper display in the speedometer is illuminated by a service symbol (e.g.: an oil can denotes an oil change).

The lower display in the speedometer indicated the time or distance remaining until the next service (e.g.: 25000).

Set desired maintenance scope with the rocker switch on the turn signal/high beam switch.

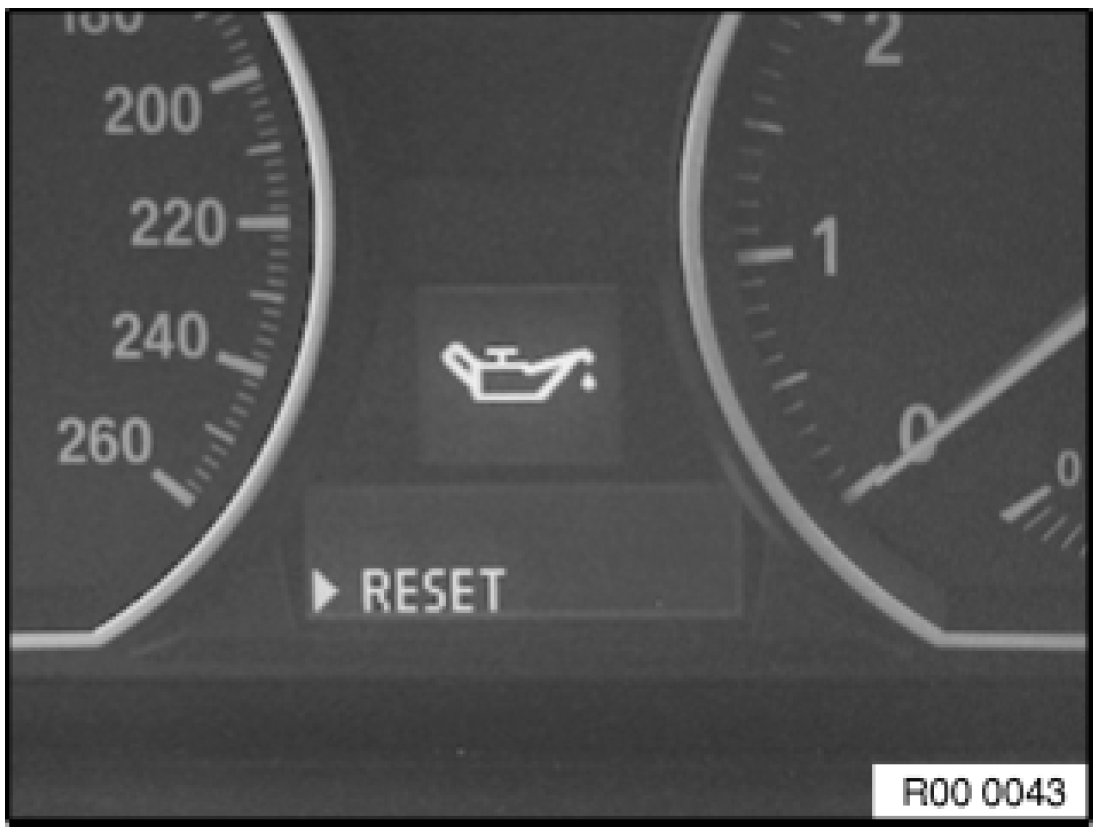

To reset, press the on-board computer button on the turn signal/high beam switch until the note "RESET" appears.

Resetting is confirmed by pressing the on-board computer button for a slightly longer period.

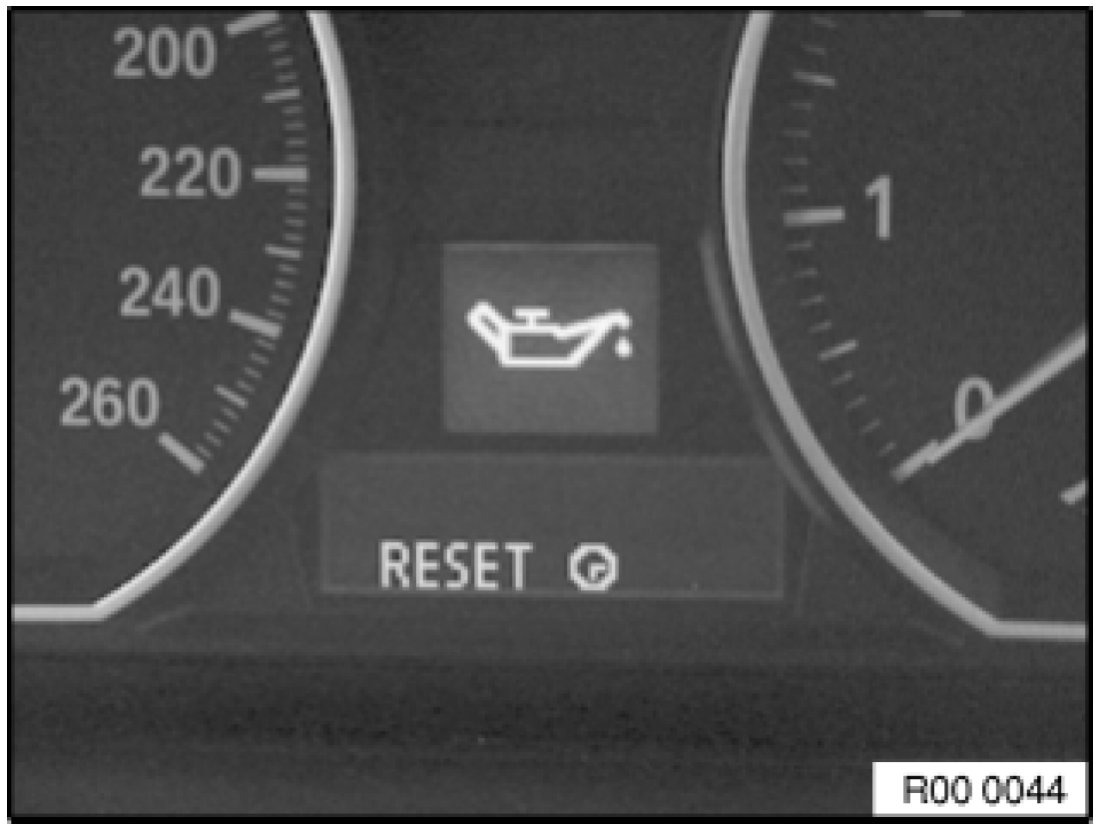

A clock is displayed during resetting.

A check/tick is displayed after "RESET" on successful resetting.

Repeat the procedure for each additional service which is to be reset.

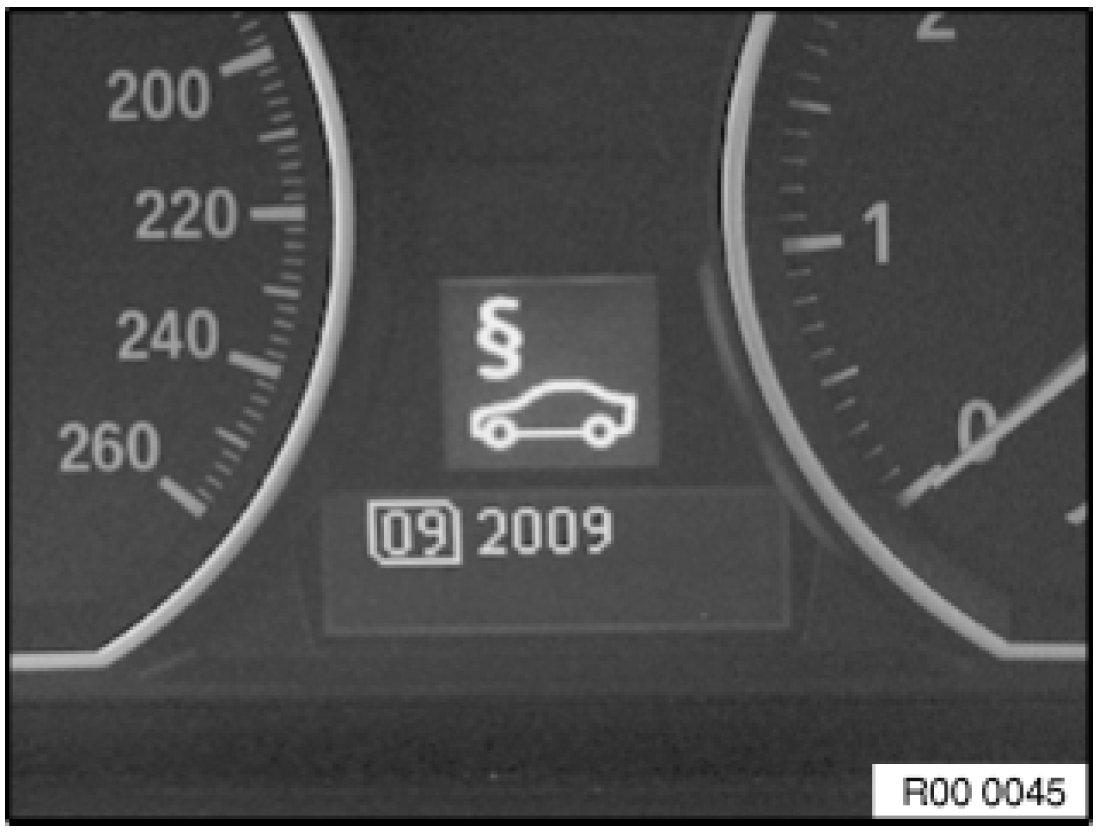

The month and year are displayed in order to reset the statutory vehicle inspection.

Press on-board computer button.

Change month with rocker switch on turn signal/high beam switch.

Press on-board computer button to confirm.

Change year with rocker switch on turn signal/ high beam switch.

Press on board computer button to confirm.
