51 16 282 Removing and Installing/Replacing Left or Right Lower Housing Section (Up to 07/12)

51 16 282 Removing And Installing/Replacing Left Or Right Lower Housing Section (Up To 07/12)







Necessary preliminary work:
- Remove protective cap from exterior mirror

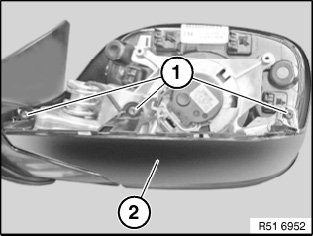

Release screws (1) on lower housing section (2).
Carefully remove lower housing section (2).

Installation note:
Plastic tab of lower housing section must snap into aluminium housing of mirror base plate.
The housing shells of the exterior mirror must snap together.
