51 16 282 Removing and Installing/Replacing Left or Right Lower Housing Section (From 07/12)

51 16 282 Removing And Installing/Replacing Left Or Right Lower Housing Section (From 07/12)







Necessary preliminary work:
- Remove retaining ring on exterior mirror

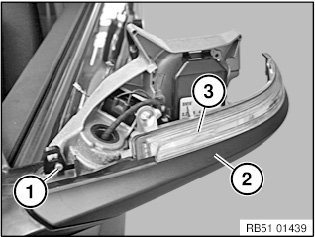

Release screw (1).
Carefully feed out lower housing section (2).
Remove side repeater (3) from lower housing section (2).

Installation note:
Make sure side repeater (3) is correctly fitted to lower housing section (2).
Make sure lower housing section (2) is correctly fitted to exterior mirror.
