51 16 001 Removing And Installing/Replacing Mirror On Left Or Right Front Door







Special tools required:
- 00 9 325

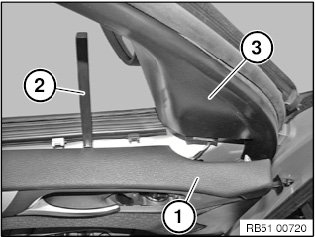

Partially unclip door trim panel (1) in the area of the rearview mirror with special tool 00 9 325.
Secure door trim panel (1) with suitable tool (2).
Partially loosen door window frame cover (3).







NOTE: Graphic is similar.

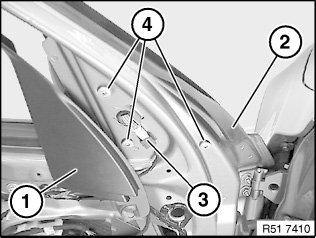

Press cover (1) and guide rubber (2) to one side.
Disconnect plug connection (3).
Release screws (4).
Tightening torque 51 16 1AZ.

Replacement only:
Due to the self-tapping screws, the tightening torque of the new mirror is increased by 2 Nm.







Graphic is similar.

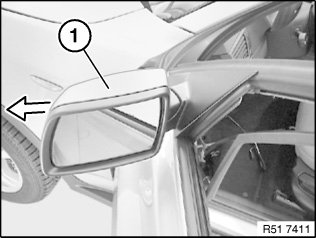

Remove mirror (1) outwards.







Installation note:

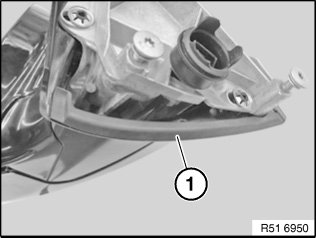

The rubber sealing strip (1) must not be missing or damaged.

Run a function check.







Replacement

- Modify mirror glass
- Modify protective cap on exterior mirror
- Modify mirror triangle sealing
