Rear Shelf: Service and Repair

51 46 020 Removing and refitting/Replacing Left Or Right Mounting For Rear Parcel Shelf

Operations on right side analogous to left side shown. Use graphics in a mirror-inverted way.







Necessary preliminary tasks:
- Remove luggage compartment wheel arch panel
- Remove panel for roof pillar at rear

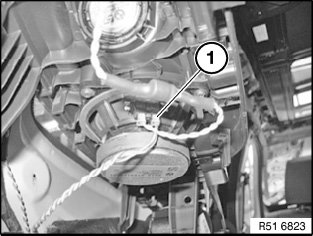

Disconnect plug connection (1) from speaker.

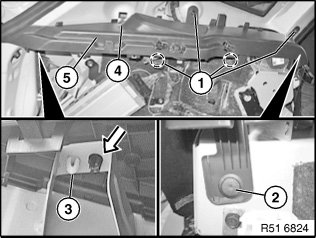

Release screws (1).
Open plastic rivet (2) and remove.
Unclip mounting (5) at the back (3).

Installation:
Position mounting (5) correctly (arrow). Replace defective clamp (3).

Unhook mounting (5) from bracket (4).

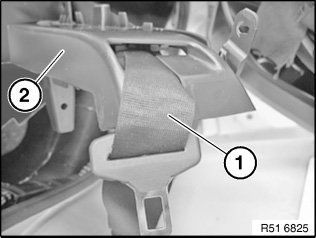

Unthread seat belt (1) from mounting (2).
Remove mounting (2).

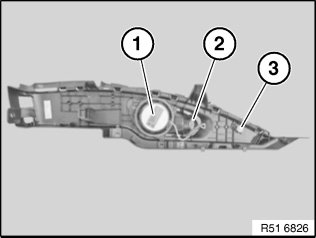

Replacement
- Modify mid-range speaker (1).
- Modify tweeter (2).
- Modify securing clamp (3)
