51 16 063 Removing and Installing/Replacing Inside Mirror (Overview)

51 16 063 Removing and Installing/Replacing Inside Mirror (Overview)







IMPORTANT:
- Rear-view mirrors with modified mirror base are installed starting with series launch F20 and all following new productions.
- Observe new repair instructions.

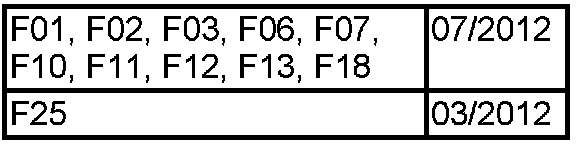

Further introduction dates:







NOTE: If the document for the selected model is not required or not approved, the following message will be displayed when clicking on the "cross-reference": "No documents with further information available for the currently selected vehicle context".

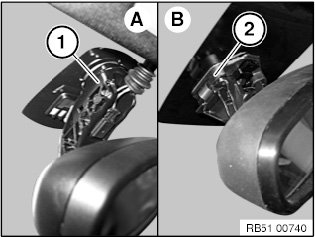

Distinguishing feature:
(A) old version, small mirror base (1) with round base plate on windscreen
(B) new version, large mirror base (2) with square base plate on windscreen

NOTE: Dismantling of mirror cap is identical on both versions.







Version with mirror arm end cap:
- old version







Version with mirror arm end cap:
- new version







Version with rain sensor:
- old version
- new version







Version with high-beam assistant:
- old version
- new version







Version with Toll interior mirror for Japan:
- old version
- new version
