Home >> BMW >> 2013 >> M6 Convertible (F12) V8-4.4L Turbo (S63T) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Trim Panel >> Specifications

Trim Panel: Specifications

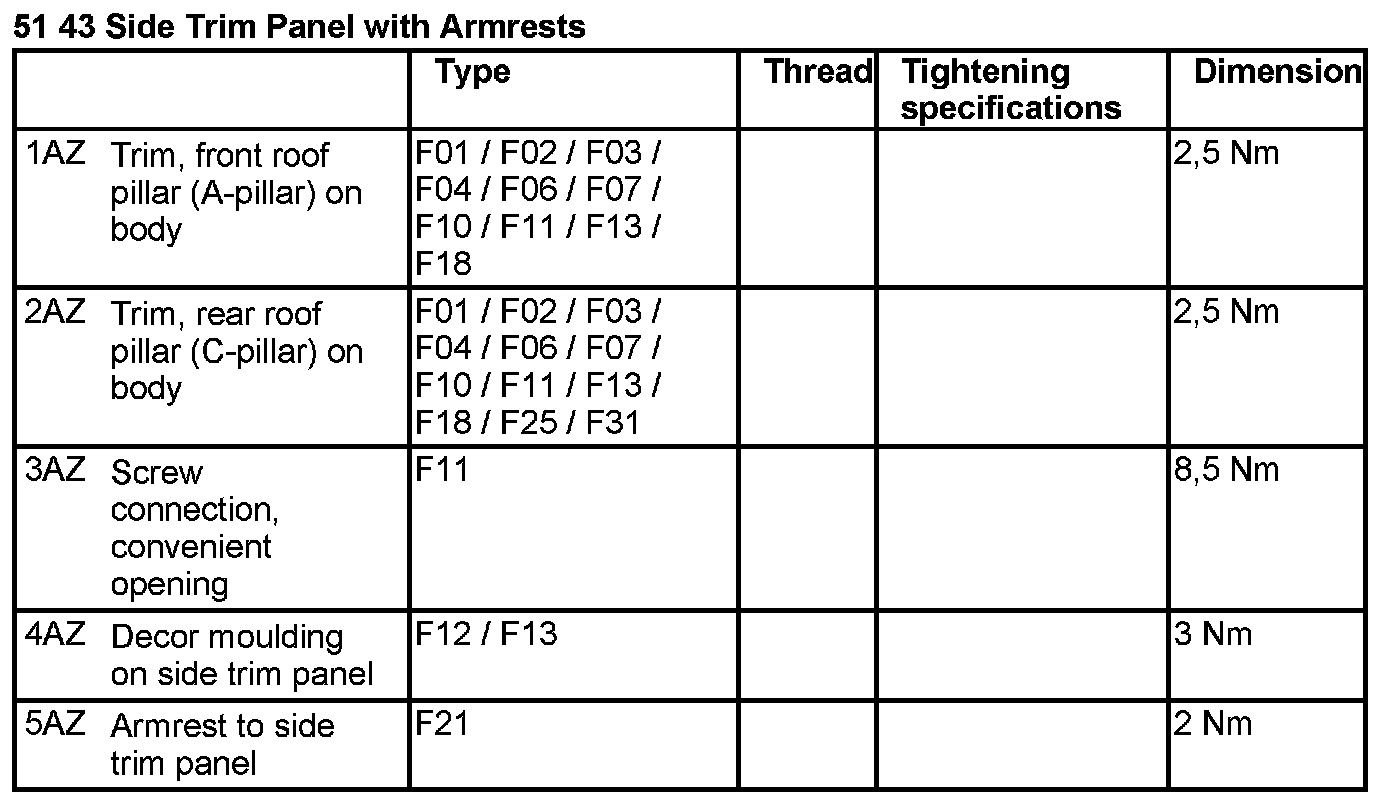

51 43 Side Trim Panel With Armrests
