51 43 070 Removing and Installing/Replacing Side Trim Panel, Footwell, on A-Pillar, Left

51 43 070 Removing And Installing/Replacing Side Trim Panel, Footwell, On A-Pillar, Left







Special tools required:
- 00 9 317







Necessary preliminary tasks:
- Remove front entrance cover strip (inside)
- Remove trim panel for pedal assembly

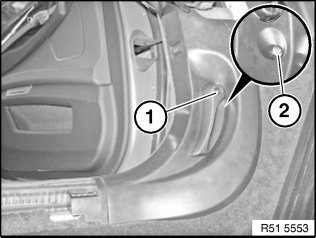

Release screw (1).
Remove handle from bonnet cable release.
Release screw (2).

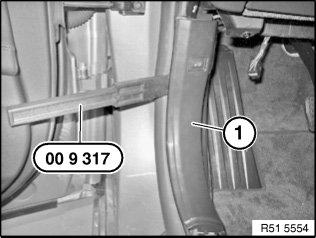

Carefully lever out A-pillar trim panel (1) using special tool 00 9 317.
Disconnect plug connection behind.

Installation note:
Neatly fit A-pillar trim (1) into door seal.







Installation note:

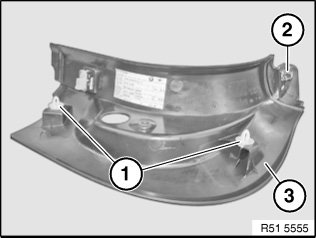

Make sure A-pillar trim panel (3) is correctly seated.
If necessary, replace both clips (1) and clamp (2).

Replacement

- Modify clips (1)
- Modify luggage compartment locking system switch
