51 47 312 Replacing Footrest For Front Passenger Compartment

51 47 312 Replacing Footrest For Front Passenger Compartment







Necessary preliminary work:
- Remove trim panel for pedal mechanism.







NOTE:

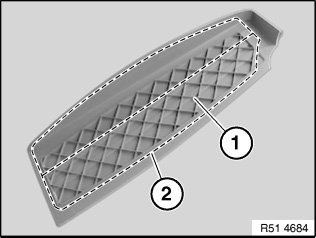

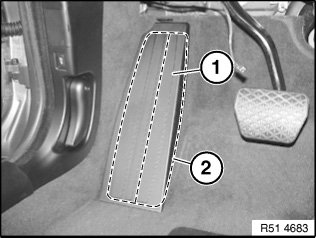

- Footrest (1) is bonded with carpet along line (2).
- Adhesive bead must remain on carpet (risk of damage).

Preheat footrest (1) with hot air blower and therefore loosen adhesive bead from footrest (1).
If necessary, tension footrest (1) with panel wedge and apply heat to pull off inwards.







Installation note:
If required, preheat footrest (1) with hot air blower and apply adhesive bead along line (2) with a hot-glue gun.
Fit footrest (1) to carpet and bond.
