51 71 482 Removing and Installing/Replacing Left or Right Tension Strut (on Rear Axle)

51 71 482 Removing And Installing/Replacing Left Or Right Tension Strut (On Rear Axle)







IMPORTANT:
- Observe safety information for raising the vehicle
- Driving without the trailing link is not permitted.

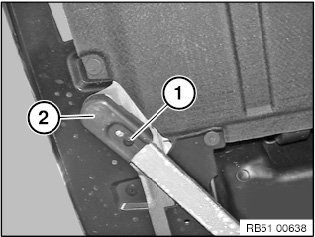

Release expanding rivet (1) and remove cover (2).

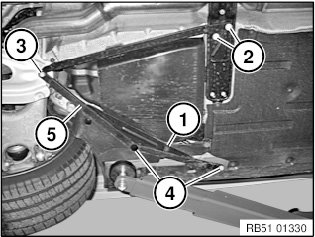

Release expansion rivet (1).
Release screws (2 to 4).
Remove trailing link (5).

Installation note:
Replace all bolts.

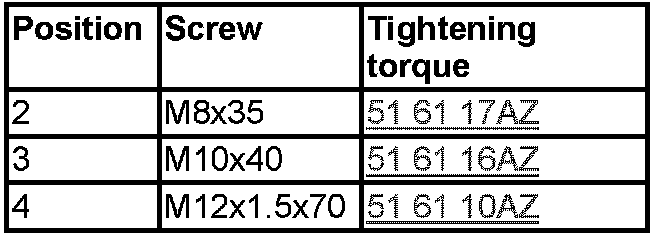

Tighten all screws to specified torque and angle of rotation.
