51 71 345 Removing and Installing/Replacing Left (Rear) Suspension Cross-Brace

51 71 345 Removing And Installing/Replacing Left (Rear) Suspension Cross-Brace







IMPORTANT:
Driving without the suspension cross-brace is not permitted. (risk of damage to the body).

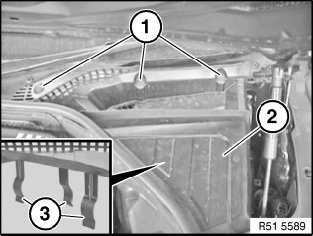

Release expanding rivet (1) and remove cover (2).

Installation note:
Replace damaged expanding rivet.

Holders (3) must snap into place in suspension cross-brace when cover (2) is installed.

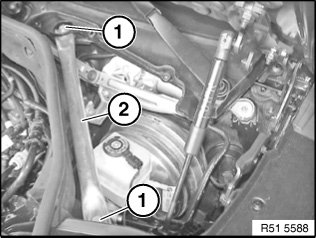

Release screw (1).
Tightening torque 51 61 1AZ.
Remove suspension cross-brace (2).

Installation note:
Make sure suspension cross-brace (2) is in correct installation position.

Replace screws (1).
