51 14 001 Replacing the Front BMW Badge

51 14 001 Replacing The Front BMW Badge







Special tools required:
- 00 9 327







IMPORTANT: The notes on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.

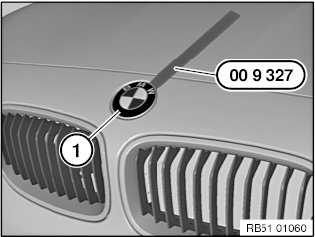

Tape off working area around the BMW badge (1) with adhesive tape.
Carefully warm up the BMW badge (1) with a hot air blower (temperature approx. 40 - 55° C ) and lift it out with the special tool 00 9 327.







Installation note:

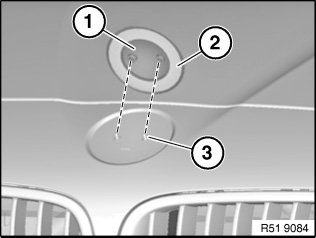

Pull liner* off adhesive tape (2).
Position BMW badge (1) over guides (3) and press down firmly.
* Liner is the protective film on a new plate.
