Hood Insulator / Pad: Service and Repair

51 48 001 Removing And Installing/Replacing Insulation Lining On Engine Hood/Bonnet

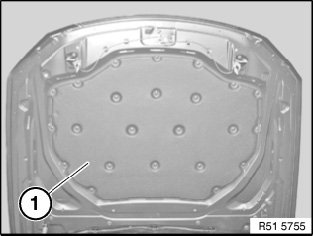

NOTE: Example shown on F01: There may be differences in detail in the case of other vehicle types.







Release all expanding rivets/clips on damping material (1).
Remove damping material (1).
