41 61 060 Removing and Installing/Replacing Left Hinge For Engine Compartment Lid (Vehicles From 09/2011)

41 61 060 Removing And Installing/Replacing Left Hinge For Engine Compartment Lid (Vehicles From 09/2011)







WARNING: Support engine compartment lid in fully opened position with suitable apparatus. Risk of injury.







For stripping and rigging operations, refer to texts on KSD CD (job number 41 61 060).

IMPORTANT: Observe separate procedure for vehicles with active pedestrian protection.







Necessary preliminary work:
Remove gas prop for engine compartment lid

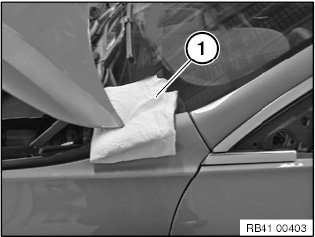

Position suitable cloth under engine compartment lid without gaps.







IMPORTANT:
- After screws have been slackened no lateral forces must be exerted on the engine compartment lid.
- Secure engine compartment lid with a second person.

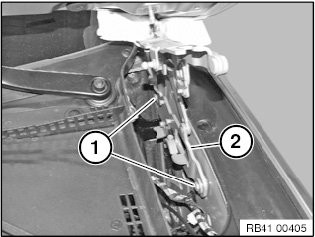

Release screws (1).
Tightening torque 41 61 1AZ.







Release screws (1) and remove hinge.
Tightening torque 41 61 3AZ.

Installation note:
Adjust hinge together with engine compartment lid.
