Front Door Striker: Service and Repair






51 21 003 Replacing Door Detent (Lock Striker), Front Left Or Right

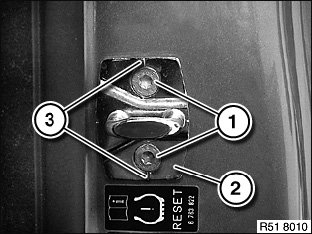

Release screws (1) and remove door detent (2).

Installation note:
If necessary, carry out basic adjustment by way of notches (3) on door detent (2) and B-pillar.
Tightening torque 51 21 2AZ.

After installation:
Adjust door detent.
