64 31 074 Removing and Installing/Replacing Right Upper Microfilter Housing Section

64 31 074 - Removing and installing/replacing right upper microfilter housing section

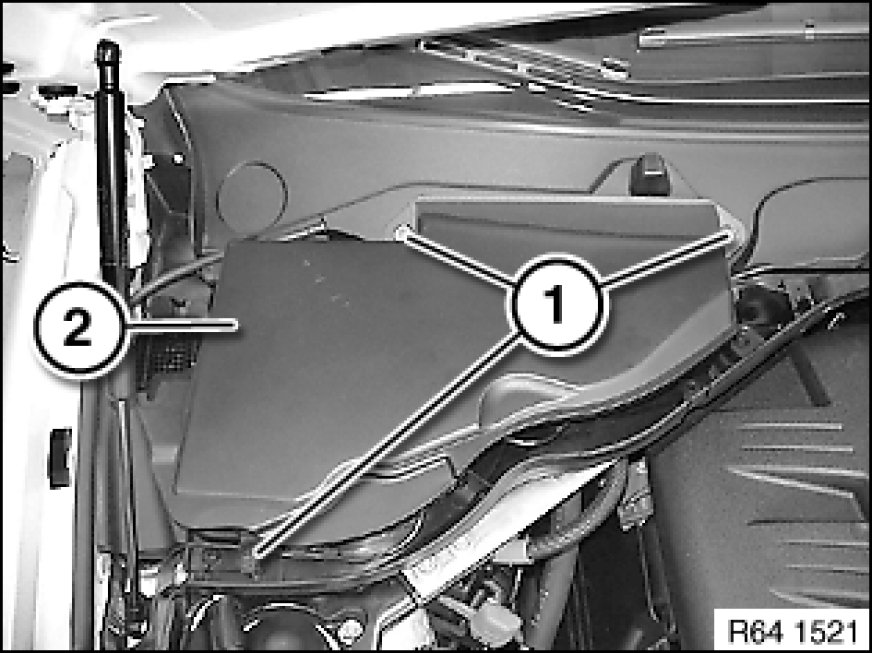

Release screws (1) and remove upper microfilter housing section (2).

Installation:
Make sure upper microfilter housing section is correctly seated.





Replacement:
Replace microfilter for interior ventilation 64 31 009 Replacing Microfilter For Interior Ventilation.
