41 12 548 Replacing Rear Cross Member on Luggage Compartment Floor (Tail Panel Removed)

41 12 548 Replacing Rear Cross Member On Luggage Compartment Floor (Tail Panel Removed)







WARNING: High-voltage system - danger to life.







WARNING:
The following points must be strictly observed prior to starting work:
- De-energise the high-voltage system
- Observe safety instructions for handling with hybrid cars







Read contents of Body, General.
Procedure Observe repair stage 3.

Strip down vehicle
Use only approved spot-welding apparatus for repairs.







Following new body parts are required (refer to Electronic Parts Catalogue):

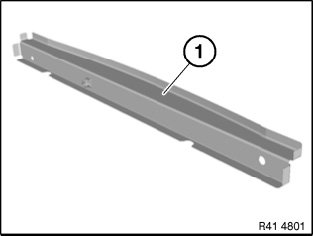

- (1) rear cross member







Removing cross-member

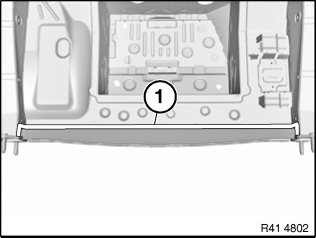

Open welded connections in area (1) and remove cross member (2).







New part preparation
Fit cross member in combination with the tail panel.







Installing cross-member:
Install cross member and weld the same as series.
