Hybrid System - A/T Fluid Maintenance Service Interval

SI B00 09 12
Maintenance and General Hints

November 2012
Technical Service

SUBJECT
Hybrid Automatic Transmission: Fluid Maintenance Service Interval

MODEL
F30 (ActiveHybrid 3)
F10 (ActiveHybrid 5)
F02 (ActiveHybrid 7)

INFORMATION
The automatic transmission fluid is required to be changed at every second engine oil service ("connected" maintenance service to the engine oil service at Service Counter numbers: 2, 4, 6, etc.).

Refer to SI B24 07 12 for additional information.

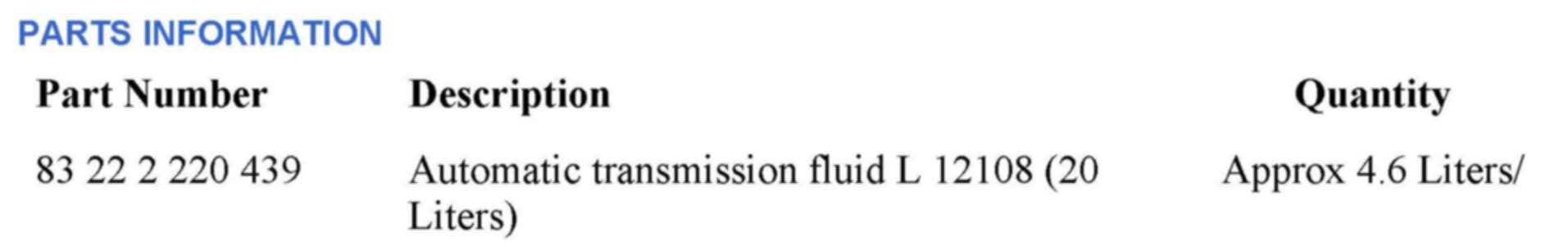

PARTS INFORMATION

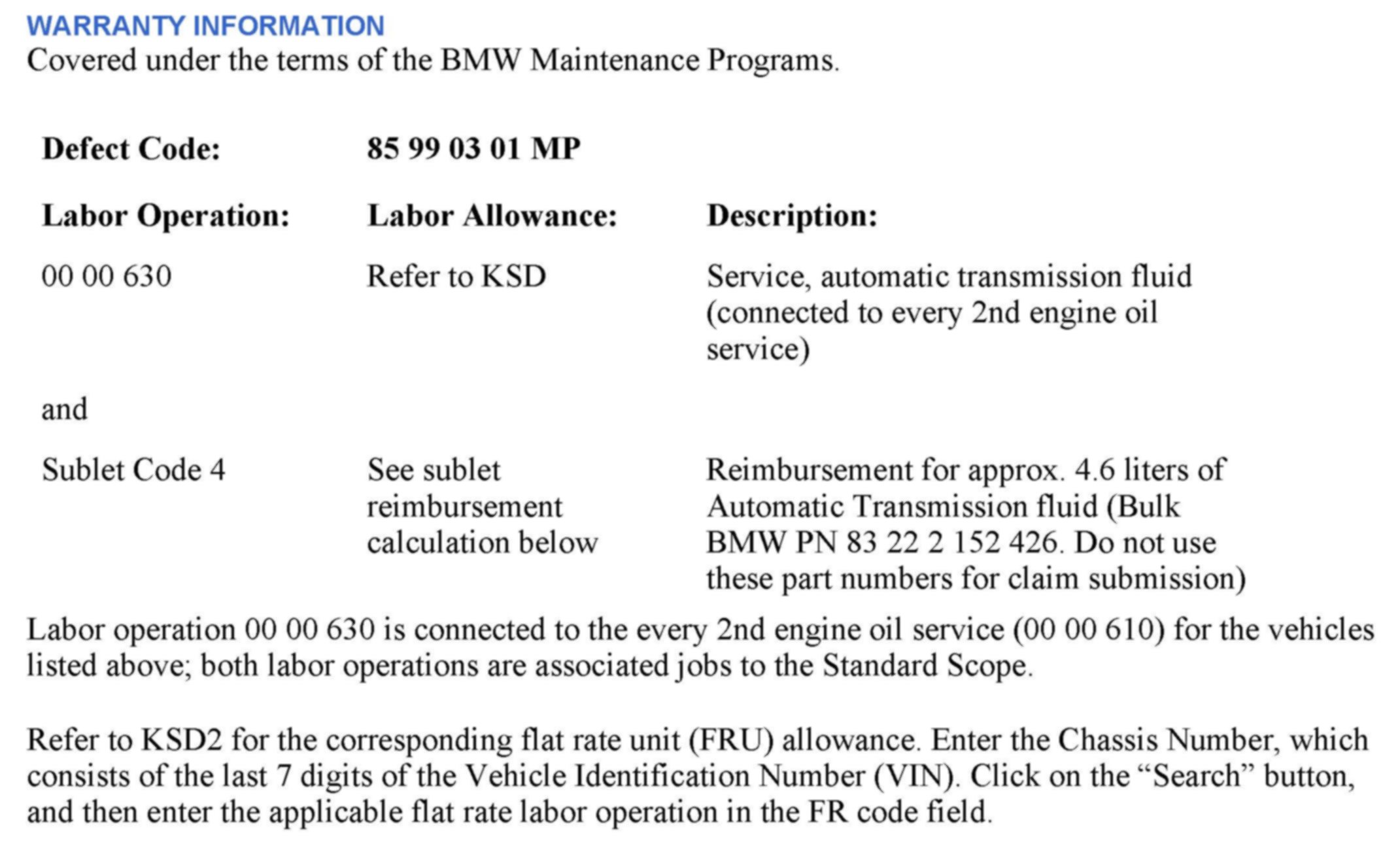

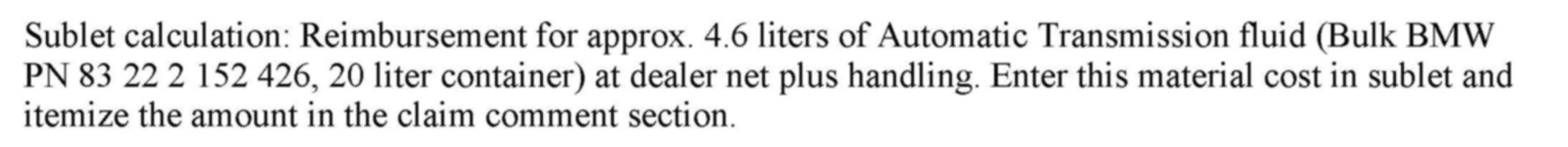

WARRANTY INFORMATION
