Hybrid System - A/T Fluid Maintenance Service Interval

SI B24 07 12
Automatic Transmission

November 2012
Technical Service

SUBJECT
Hybrid Automatic Transmission: Fluid Maintenance Service Interval

MODEL
F30 (ActiveHybrid 3)
F10 (ActiveHybrid 5)
F02 (ActiveHybrid 7)

SITUATION
The automatic transmission fluid is required to be changed at every second engine oil service ("connected" maintenance service to the engine oil service at Service Counter numbers: 2, 4, 6, etc.).

INFORMATION
This requirement is due to the hybrid-specific components that are contained in the transmission.

Refer to Repair Instruction 00 00 630, "Automatic transmission fluid service (GA8P70Z) N55 hybrid," for the proper servicing procedure.

Note:
Always observe hybrid safety information prior to working on hybrid vehicles.

Refer to SI B00 09 12 for BMW Maintenance Program claim-related information.

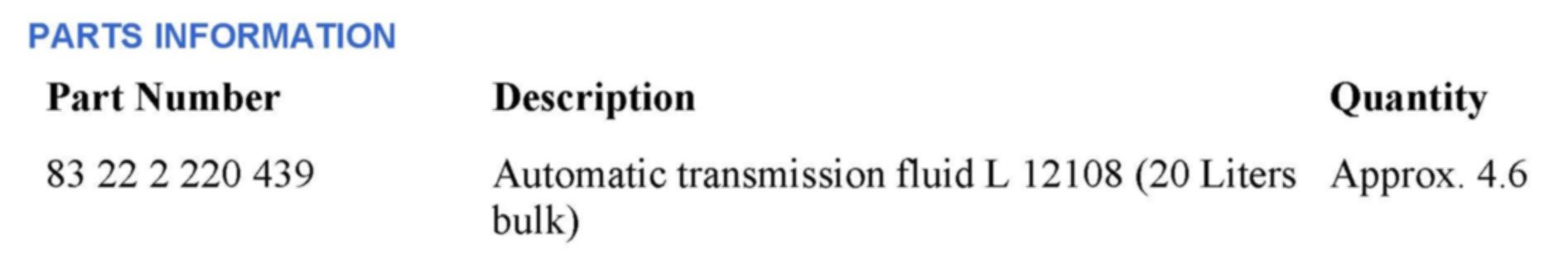

PARTS INFORMATION

WARRANTY INFORMATION
Not applicable.
