Instruments - Inconsistent Hybrid Display in CID

SI B61 01 13
General Electrical Systems

March 2013
Technical Service

SUBJECT
Inconsistent Hybrid Display in CID

MODEL
F10H (ActiveHybrid 5)

SITUATION
The following condition may be present when the split-screen option is selected in the Central Information Display (CID) and "Hybrid Display" is selected.

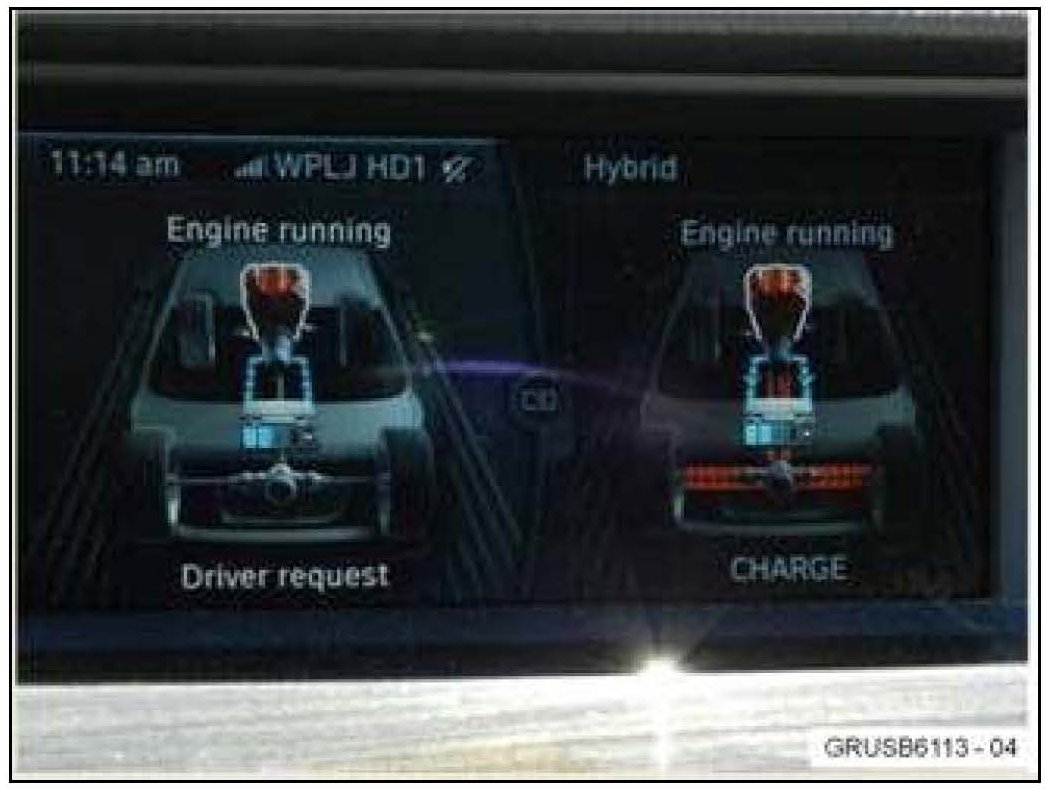

The displayed message and/or power flow display on either side of the screen is inconsistent. One example of the display is shown.

CAUSE
The data displayed on each side of the CID uses slightly different parameters. In most use cases, only one of the displays is on at a time, so it is not noticeable. The displayed information on both is technically correct.

PROCEDURE
^ Do not perform any work on the vehicle. Replacing parts or programming the vehicle will not change the display.

^ This condition does not represent a failure and no action should be taken.

WARRANTY INFORMATION
Not applicable.
