Instruments - State Of Charge Not Displayed In Cluster

SI B61 31 12
General Electrical Systems

November 2012
Technical Service

This Service Information bulletin supersedes SI B61 31 12 dated October 2012.

[NEW] designates changes to this revision

SUBJECT
State of Charge Not Displayed in Instrument Cluster

MODEL
F30 (ActiveHybrid 3)

SITUATION





The high-voltage battery state of charge is not visible in the Instrument Cluster when called up through the Board Computer (BC). This condition may be present intermittently.

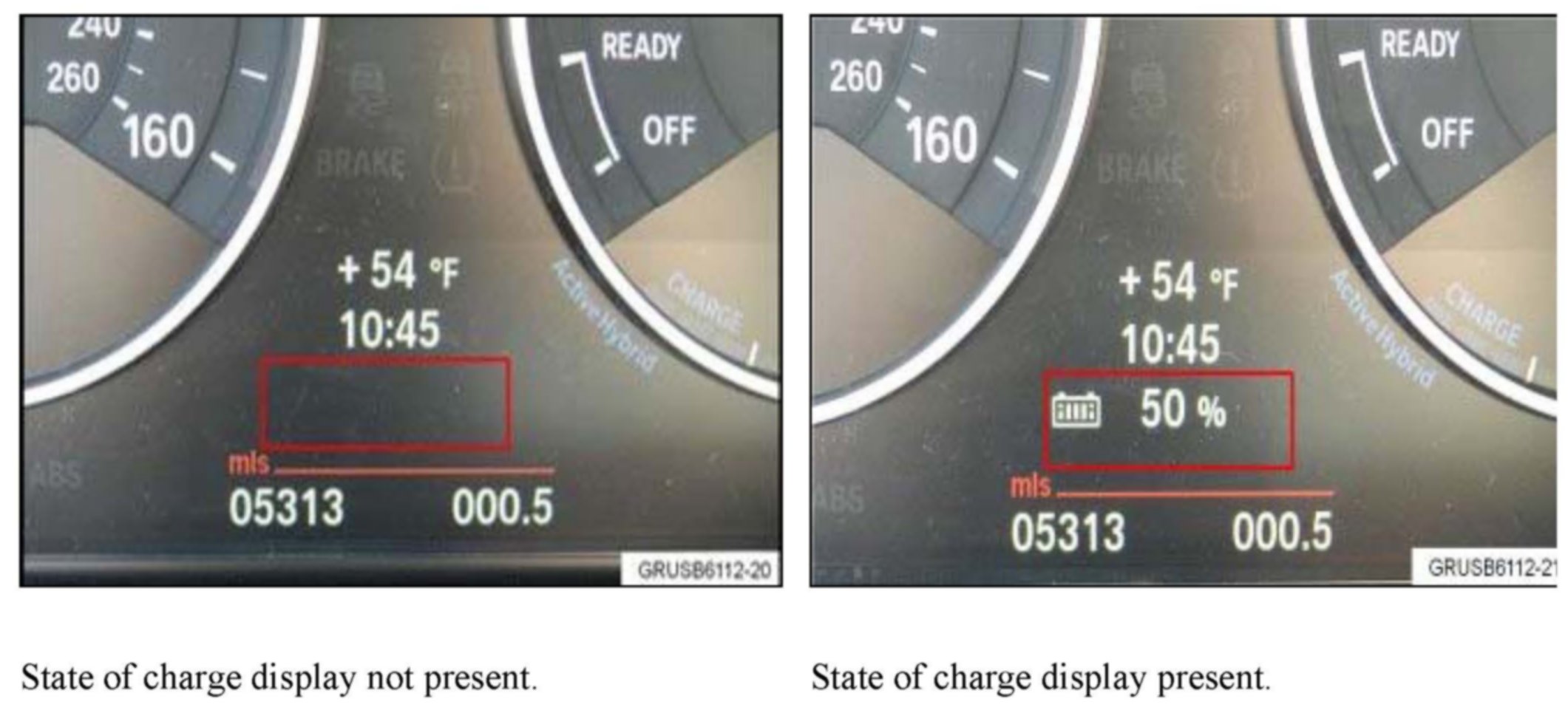

State of charge display not present.State of charge display present.

CAUSE
Instrument cluster replacement or importing of the personal profile

CORRECTION
DO NOT replace any parts or perform any programming. Do a PIA reset (personal profile) using Service function "AS6510_CICCKM-Deleting Personal Profile" in ISTA/D. The path to the service function is shown below:

Service function / 03 Body / Headunit / Start search / AS6510_CICCKM-Deleting Personal Profile

A permanent solution will be available in a future ISTA/P version. This bulletin will be updated at that time.

[NEW] Important Note:
Please inform the customer to not import his/her personal profile until a permanent solution is available.





[NEW] WARRANTY INFORMATION
