51 16 045 Removing and Installing/Replacing Retaining Ring on Left or Right Exterior Mirror (Up to 07/12)

51 16 045 Removing and Installing/Replacing Retaining Ring on Left or Right Exterior Mirror (Up to 07/12)







Necessary preliminary work:
- Remove mirror glass

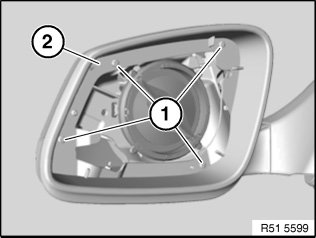

Release screws (1).
Carefully bend exterior mirror protective cap outwards and carefully unclip retaining ring (2).
Latch mechanisms on retaining ring (2) and retaining lugs on protective cap must not be damaged in the process.

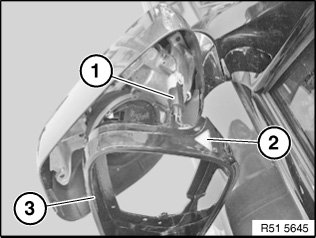

Version with lane change warning:
Also unlock and disconnect plug connection (1) for optical signal transmitter (2).

Remove retaining ring (3).
