Trim Panel: Service and Repair

51 47 243 Removing And Installing/Replacing All Luggage Compartment Trims (Without Ski Bag)







Necessary preliminary work:
- Remove luggage compartment wheel arch panel on left.
- Remove right luggage compartment wheel arch panel







NOTE: The luggage compartment partition wall F02 with optional equipment rear air conditioning is shown.

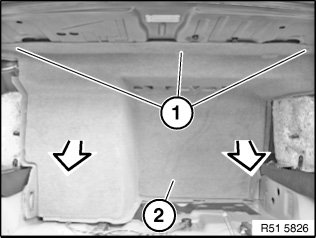

Lever out expanding rivet (1).
Feed out luggage compartment partition wall (2).







F01h and F02h only:

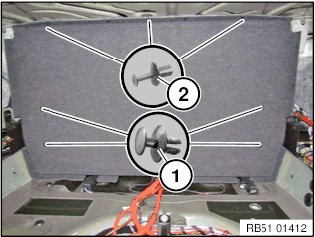

Release expanding rivets (1) and expanding rivets (2) and remove bulkhead panel (3).







For replacement of luggage compartment partition wall only F02 with rear air conditioning:
If an old version of the luggage compartment partition wall is installed, it must be converted to the new version.
For this purpose, replace the removed left and right luggage compartment wheel arch panels.
