51 47 065 Removing and Installing/Replacing Rocker Panel Trim on Front Left or Right Entrance (Outer)






51 47 065 Removing And Installing/Replacing Rocker Panel Trim On Front Left Or Right Entrance (Outer)







Special tools required:
- 00 9 317

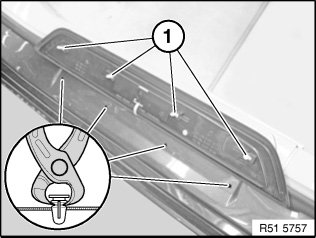

Lift cover panel (2) up and out at clips (1) using special tool 00 9 317.
Remove cover (2).







Installation note:
If necessary, remove clips (1) from entrance with a suitable tool.

Replace faulty clamps (1).
