41 12 548 Replacing Rear Cross Member on Luggage Compartment Floor (Tail Panel Removed)

41 12 548 Replacing Rear Cross Member On Luggage Compartment Floor (Tail Panel Removed)







Read contents of Body, General.
Follow procedure for repair stage 3.
Strip down vehicle
Use only approved spot-welding apparatus for repairs.

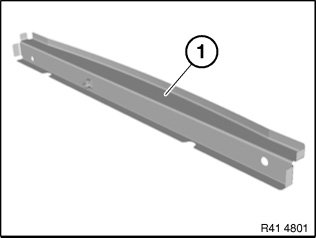

Following new body parts are required (refer to Electronic Parts Catalogue):
- (1) End of luggage compartment floor

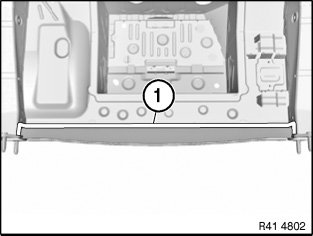

Removing cross-member







Open welded connections in area (1) and remove cross member (2).







New part preparation
Fit cross member in combination with the tail panel.







Installing cross-member:
Install cross member and weld the same as series.
