Rear Fender Liner: Service and Repair

51 71 041 Removing And Installing/Replacing Rear Left Or Right Wheel Arch Cover







Necessary preliminary work:
- Remove rear wheel

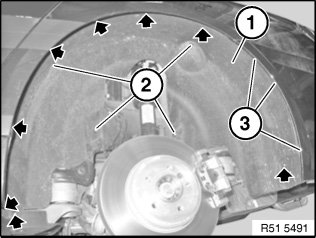

Release all marked screws (arrows).
Release screws (3).
Unscrew nuts (2).
Carefully feed out rear wheel arch cover (1) towards bottom.

Installation note:
Ensure wheel arch cover (1) is correctly seated.
Make sure all screws are installed in correct position.
Screws (3) are longer than remaining screws.
