Trunk / Liftgate Hinge: Service and Repair

41 62 043 Removing And Installing/Replacing Left Hinge For Tailgate







Read contents of Body, General
Carry over schematic diagram to the relevant vehicle type.
Necessary preliminary work:
- Remove tailgate
- Remove tension spring/spindle drive
- Remove panel for storage shelf
- Remove luggage compartment wheel arch panel

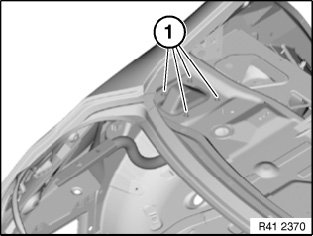

Open screw connections (1) on vehicle.
Remove hinge.

Installation note:
Tightening torque 41 62 2AZ.

Adjust hinge together with tailgate.
