51 23 400 Removing and Installing/Replacing Left or Right Actuator (Active Pedestrian Protection), Vehicles From 09/2011

51 23 400 Removing And Installing/Replacing Left Or Right Actuator (Active Pedestrian Protection), Vehicles From 09/2011







WARNING:
Adhere to the following safety information so as to avoid a danger of injury by the actuator.
- The battery negative lead must be clamped off prior to work on the actuator or engine compartment lid.
- Do not exert any force on the actuator.
- Incorrect handling may result in triggering of the actuator and thereby cause serious injury.







Necessary preliminary work:
Disconnect battery earth lead

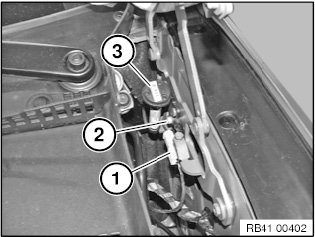

Unlock plug connection (1) and disconnect.
Release bolt (2) and remove actuator (3).
Tightening torque 41 61 8AZ.
Comply with notes regarding handling active pedestrian protection.
