41 61 060 Removing and Installing/Replacing Left Hinge For Engine Compartment Lid (Vehicles Up to 09/2011)

41 61 060 Removing And Installing/Replacing Left Hinge For Engine Compartment Lid (Vehicles Up To 09/2011)







WARNING: Support engine compartment lid in fully opened position with suitable apparatus. Risk of injury.







For stripping and rigging operations, refer to texts on KSD CD (job number 41 61 060).

IMPORTANT: Observe separate procedure for vehicles with active pedestrian protection.







IMPORTANT:
- After screws have been slackened no lateral forces must be exerted on the engine compartment lid.
- Secure engine compartment lid with a second person.

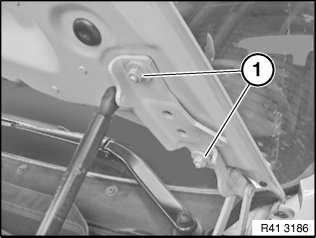

Unscrew nuts (1).
Tightening torque 41 61 1AZ.
Remove gas pressure spring

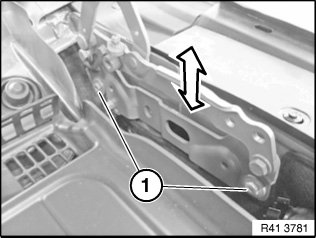

Release screws (1) and remove hinge.

Installation note:
Tightening torque 41 61 3AZ.
Adjust hinge together with engine compartment lid.
