Rear Door Limiter: Service and Repair

51 22 280 Removing And Installing/Replacing Door Stop On Left Or Right Rear Door







Necessary preliminary tasks:
- Remove sound insulation







IMPORTANT:
- Secure rear door against falling closed.
- After disengaging door stop, use suitable means of preventing door from opening past its maximum permissible opening angle (risk of damaging paintwork or bodywork).

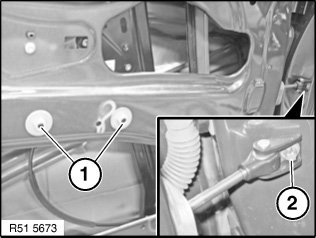

Release nuts (1) and remove washers.
Tightening torque 51 22 4AZ.
Release screw (2).
Tightening torque 51 22 3AZ.
Feed out door brake towards bottom.
