Rear Bumper Reinforcement: Service and Repair

51 12 050 Removing And Installing/Replacing Support For Rear Bumper Panel







Necessary preliminary work:
- Remove rear bumper trim

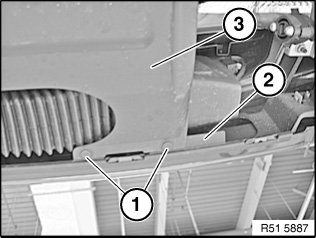

Lever out expander rivet (1) on adapter (2) and cover (3).

NOTE:
- Cover can vary.
- The trailer tow hitch optional equipment is pictured.

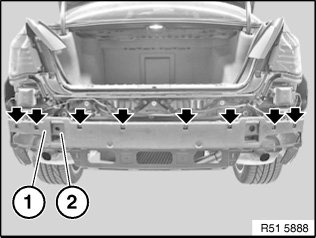

Unclip adapter (1) on bumper panel (2) at marked points.
If necessary, unlock and disconnect plug connections on control unit for RDC or Smart Opener.







NOTE: Operation is described on the left side. Right side identical.

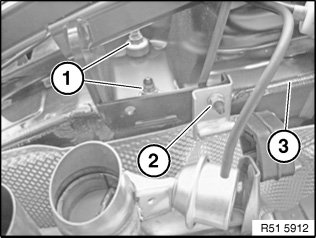

Unscrew nuts (1).
Tightening torque 51 12 1AZ.
Slacken nut (2).
Remove carrier (3).







Replacement:
- Remove trailer tow hitch
