Restraints - Front Crash-Active Headrest Limited Height Adj.
SI B52 01 13Seats
March 2013
Technical Service
This Service Information bulletin supersedes SI B52 01 13 dated February 2013.
[NEW] designates changes to this revision
SUBJECT
Front Crash-Active Headrest Has Limited Height Adjustment
MODEL
F06
F12
F13
SITUATION
The front headrest maximum height adjustment is limited.
This is a normal characteristic of the seat equipped on these models. This service information will explain why and how this is necessary on these vehicles.
Example: A 6'3"male adjusts his driver's seat all the way back; the seat base is lowered and the headrest is fully raised. His spouse, who is 5' 2", wants to use the car and enters the vehicle to reposition the seat. As she moves the seat all the way forward and raises the seat base, she notices the seat's forward movement stops briefly, and then the headrest automatically begins to lower slightly. After the headrest stops, she can continue to move the seat forward until the next time it stops; then the headrest lowers once again. The customer states this happens whether she uses her seat memory button or the manual seat switches.
CAUSE
Normal characteristics of the headrest safety design

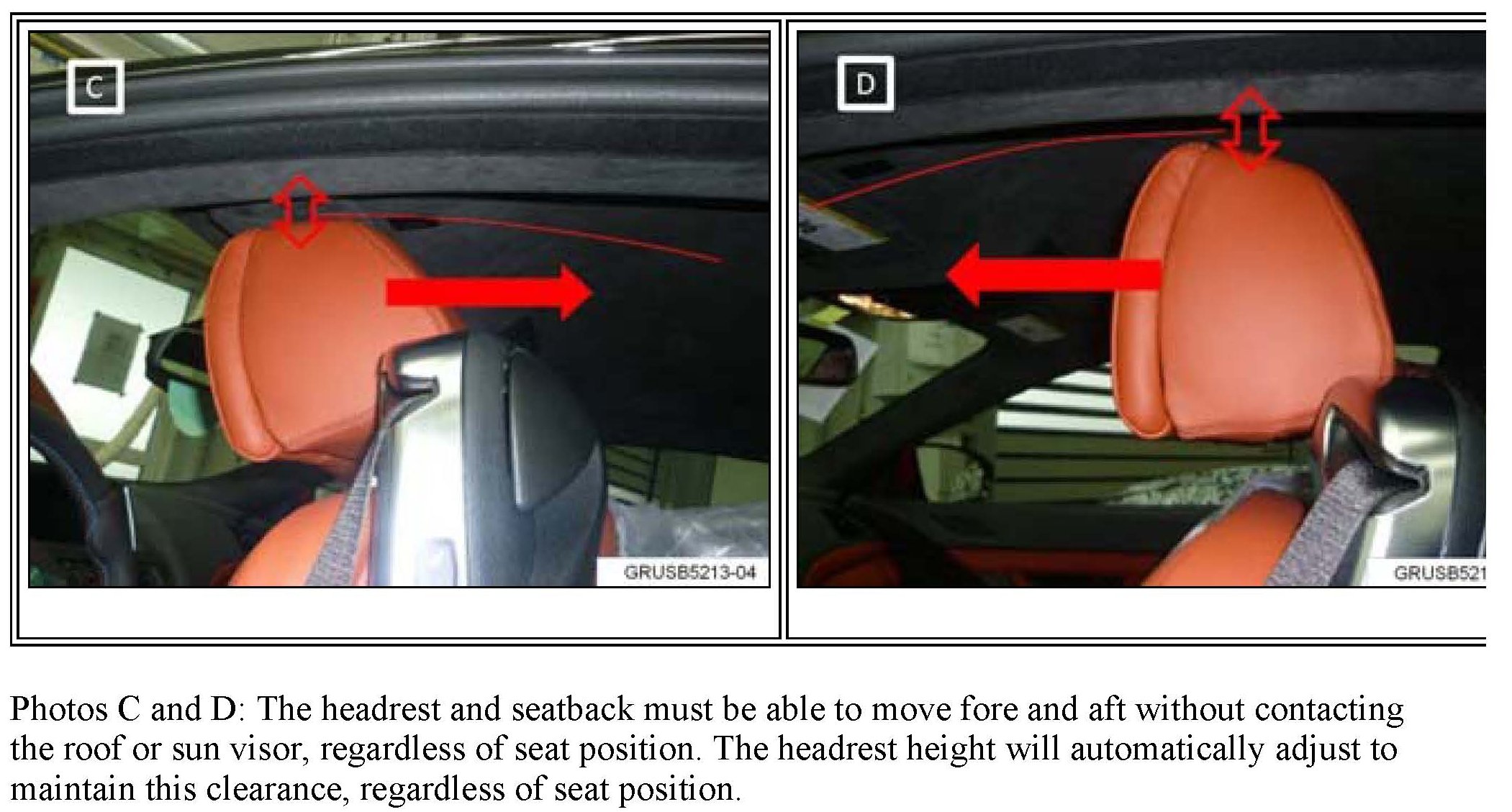

The headrest's upper travel is limited to provide the proper clearance to the roof panel and the sun visor, at any seat position, in the event of an accident.
Note:
Replacing any headrest or headrest drive for this design feature will not change the characteristic of this feature.
INFORMATION
This bulletin will help you understand the features of the crash-active headrest and explain the benefits to your customers and center staff.
1. Learn the safety features and operation of the front seat and crash-active headrest.

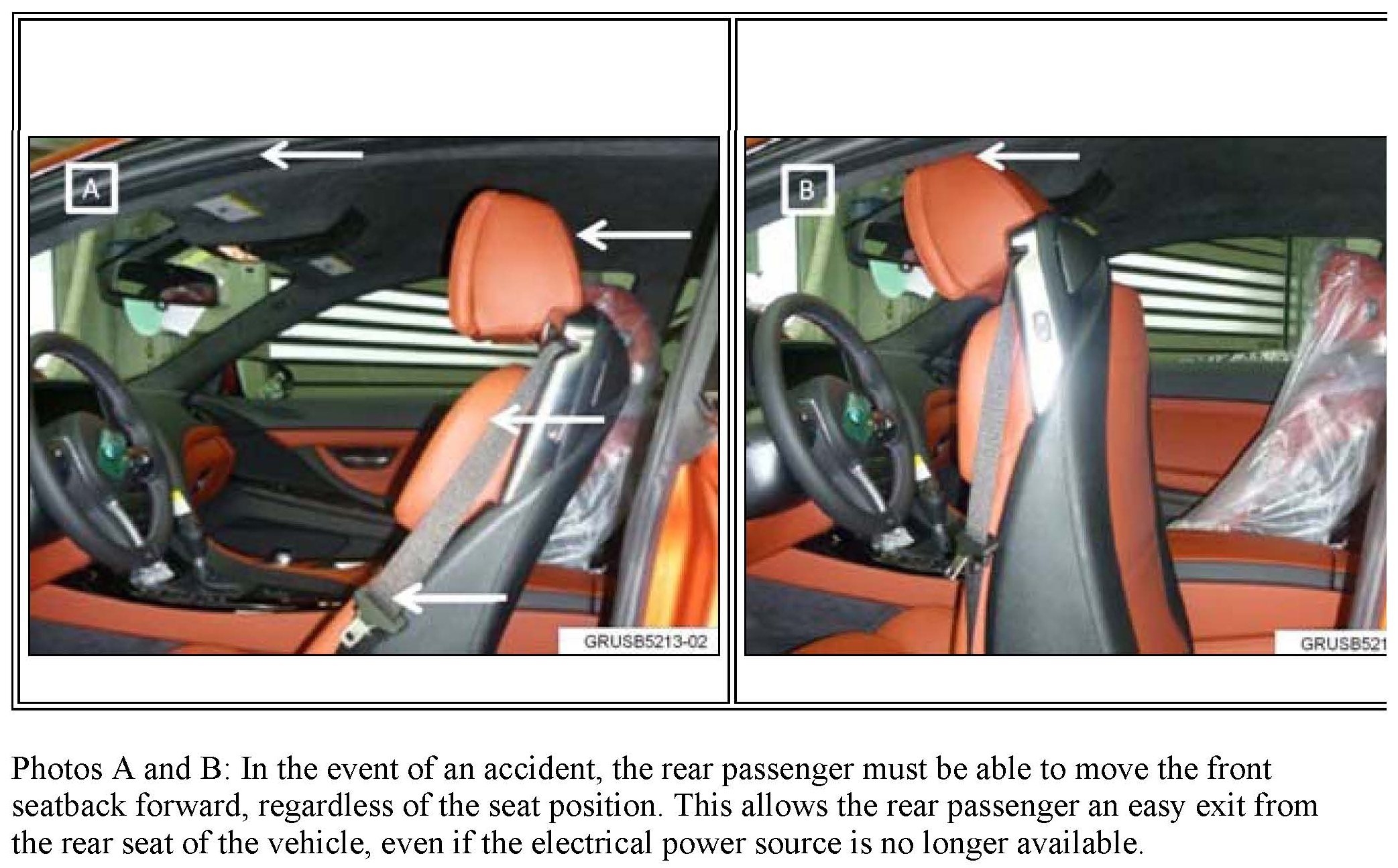

2. When the seatback is manually moved, the headrest must have free movement throughout the full range of the seatback.

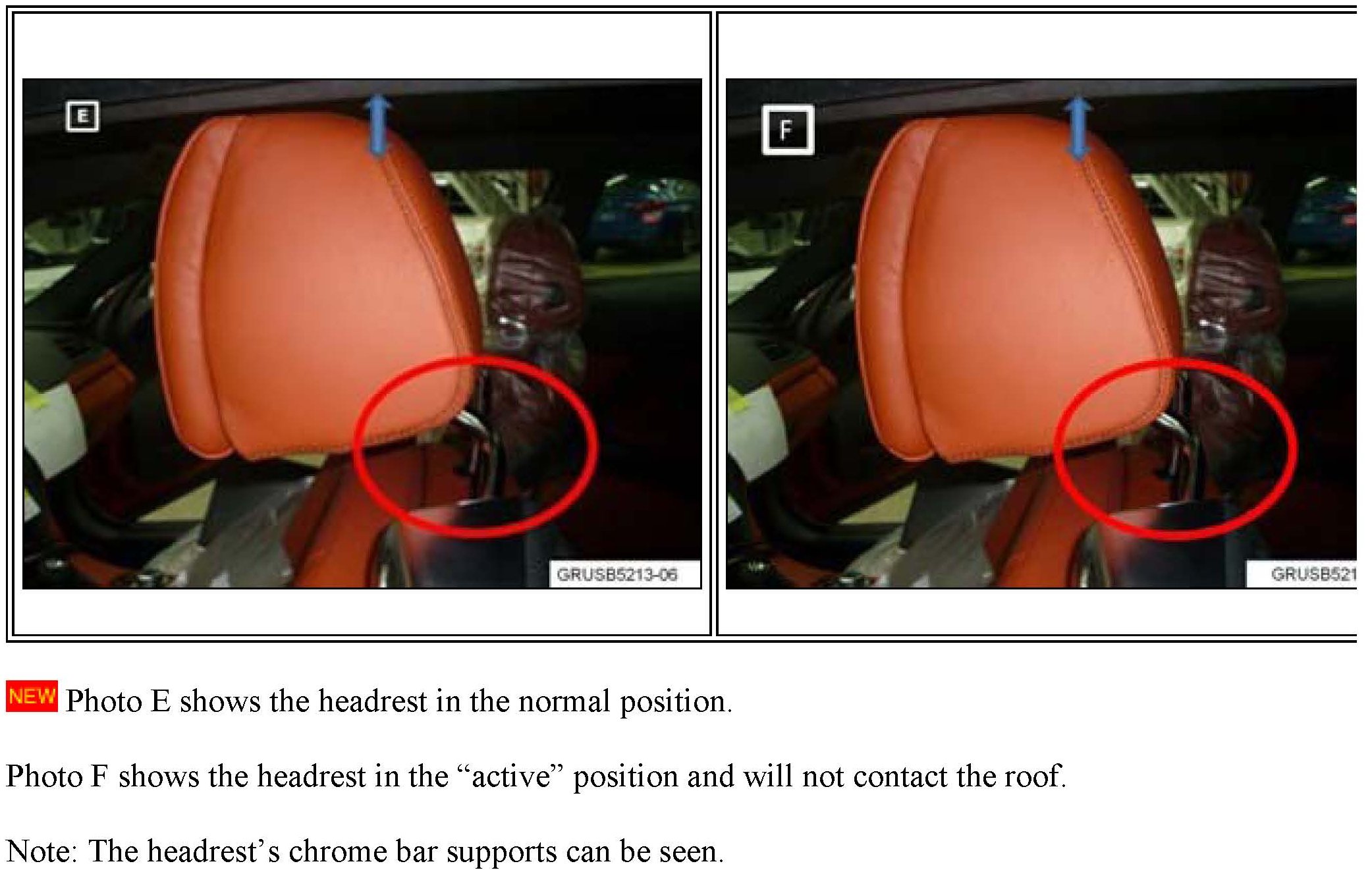

3. In case of an accident, the crash-active headrest will be automatically activated forward to reduce the distance between the occupant's head and the headrest. This results in increased safety for the occupant.
WARRANTY INFORMATION
Not applicable.
