Drink Holders: Service and Repair

51 16 ...Removing And Installing Cup Holder Insert







When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).







Necessary preliminary work:
- Remove centre console cover

Version with manual gearbox:
- Work is described under "Replacing centre console cover"

Version with automatic transmission:
- Perform the following steps

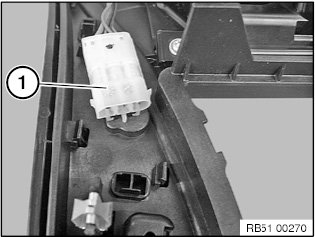

Detach plug connection from cigarette lighter.

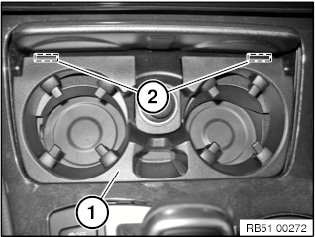

Using the index and middle fingers, pull cupholder insert (1) upward at marked position (arrows) until rear attachment points (2) unlock.

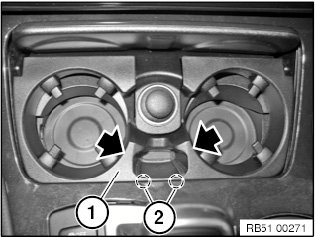

Continue pulling the cupholder insert (1) up and forward at a slant until the front attachment points (2) disengage.
Remove the cupholder insert.







Installation note:

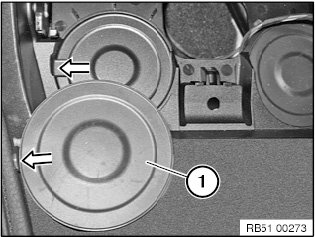

Check that the left and right inserted mats (1) are installed in the correct position and correct them if necessary.

Follow the instructions for correctly installing the cupholder insert.
