64 31 081 Removing and Installing/Replacing Microfilter Housing

64 31 081 Removing And Installing/replacing Microfilter Housing (upper Section)







NOTE:

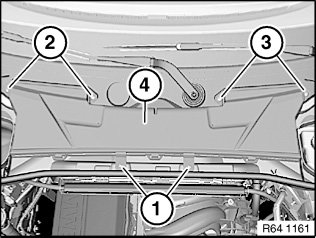

Example shown onE87:
Release screws (1).
Unfasten screws (2 and 3).
Remove upper section of microfilter housing (4).

Installation:
Make sure upper section of microfilter housing (4) is correctly seated.

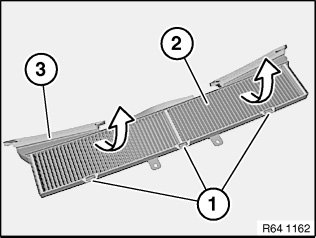

Replacement:
Release catches (1).
Release microfilter (2) in direction of arrow from upper section of housing (3).

Installation:
Make sure microfilter (2) is correctly seated.
