Front Door Latch: Service and Repair












Erforderliche Spezialwerkzeuge:
- 00 9 317
- 51 2 190
- 51 3 190

51 21 090 Overview Of Removing And Installing/Replacing Door Lock In Left Or Right Front Door







Safety information/instructions must be noted and followed.

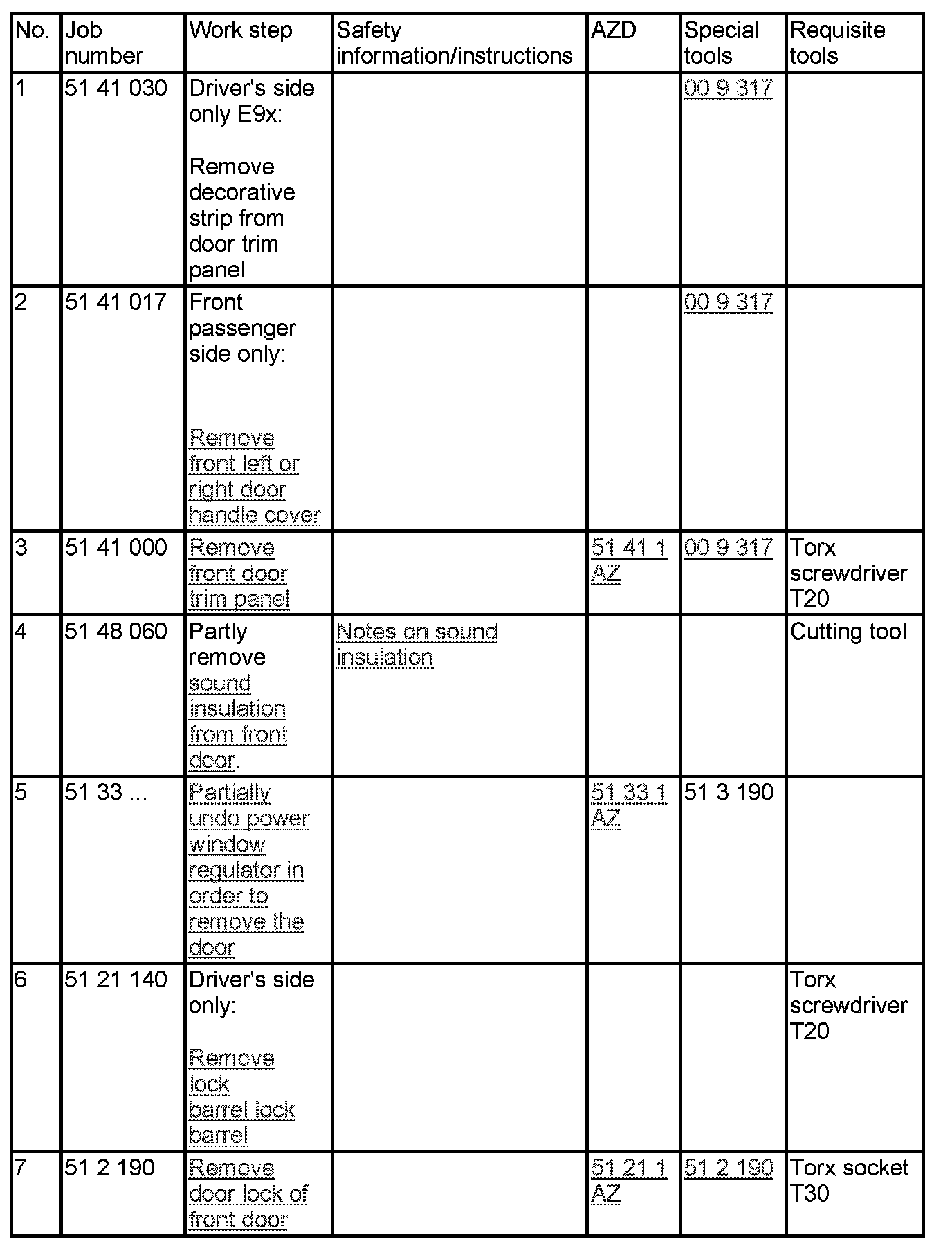

Removal:












Installation is performed by following the steps in reverse order.
