General - Track Width / Wheelbase / Series

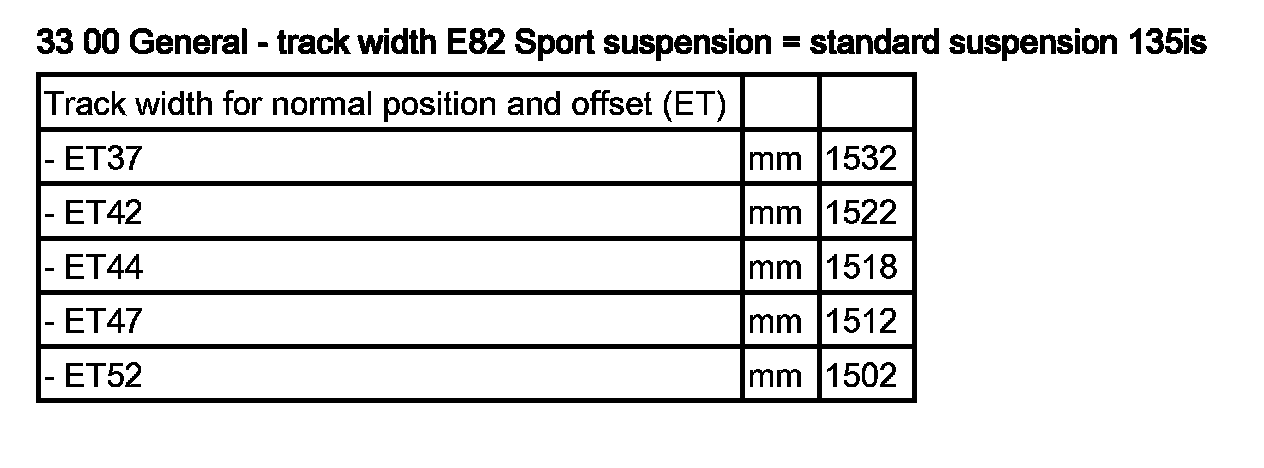

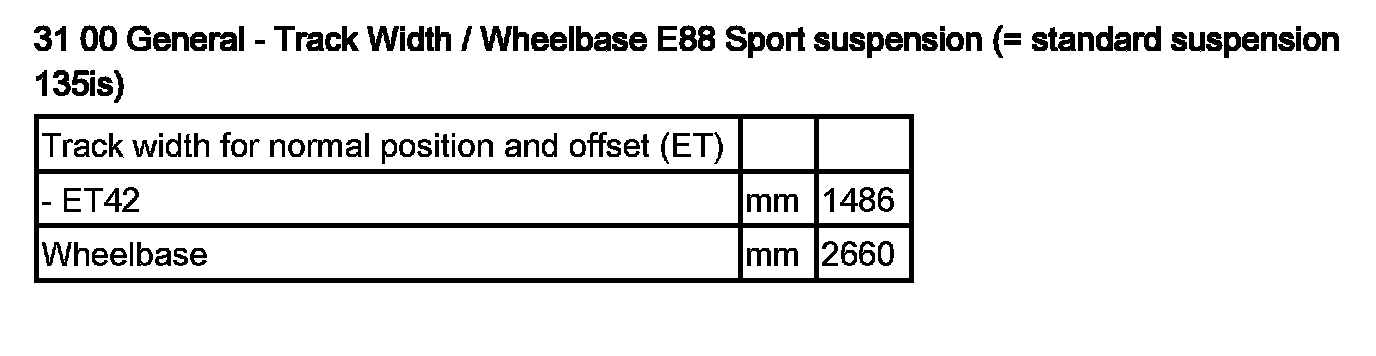

Track width, 135iS Coupe (E82) and Convertible (E88)

E82






E88
