Body - Convertible Top Doesn't Open Properly
SI B54 08 10Special Roofs
November 2012
Technical Service
This Service Information bulletin supersedes SI B54 08 10 dated January 2011.
[NEW] designates changes to this revision
SUBJECT
Convertible Top Does Not Open Properly
MODEL
[NEW] E88
SITUATION
When opening the convertible top, the interior cover flap remains open.
CAUSE
The cable for the flap operation is either kinked or dislodged.
PROCEDURE

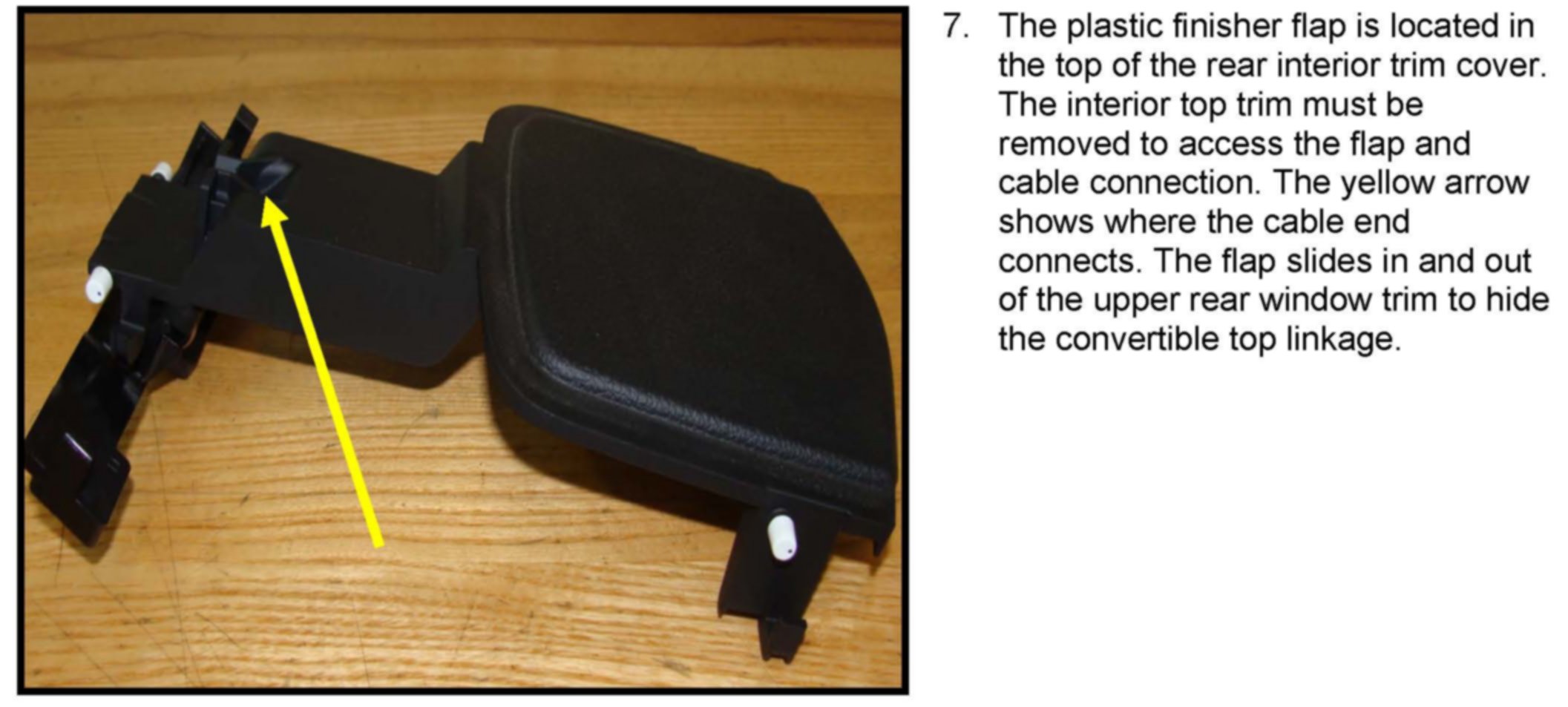

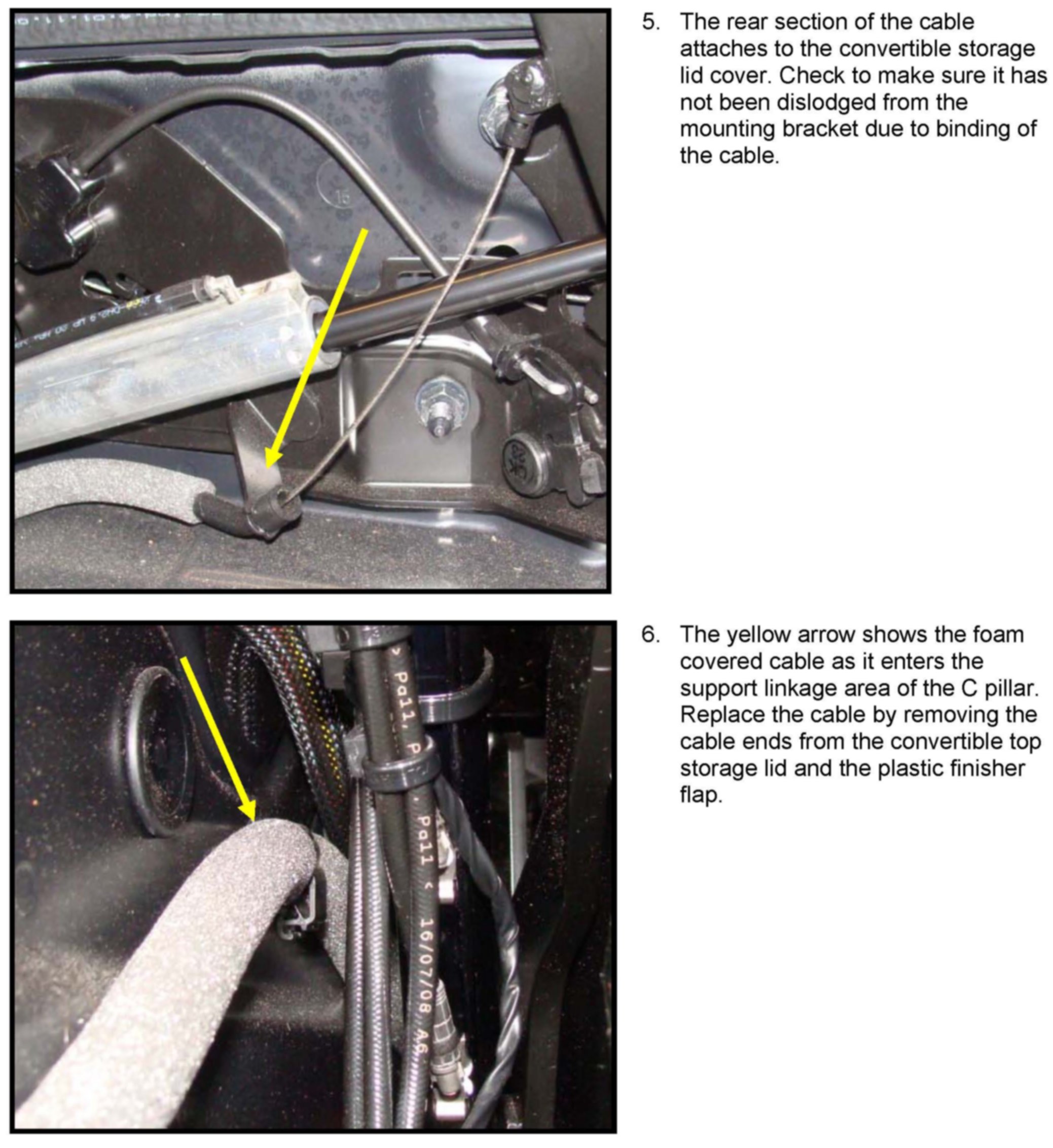

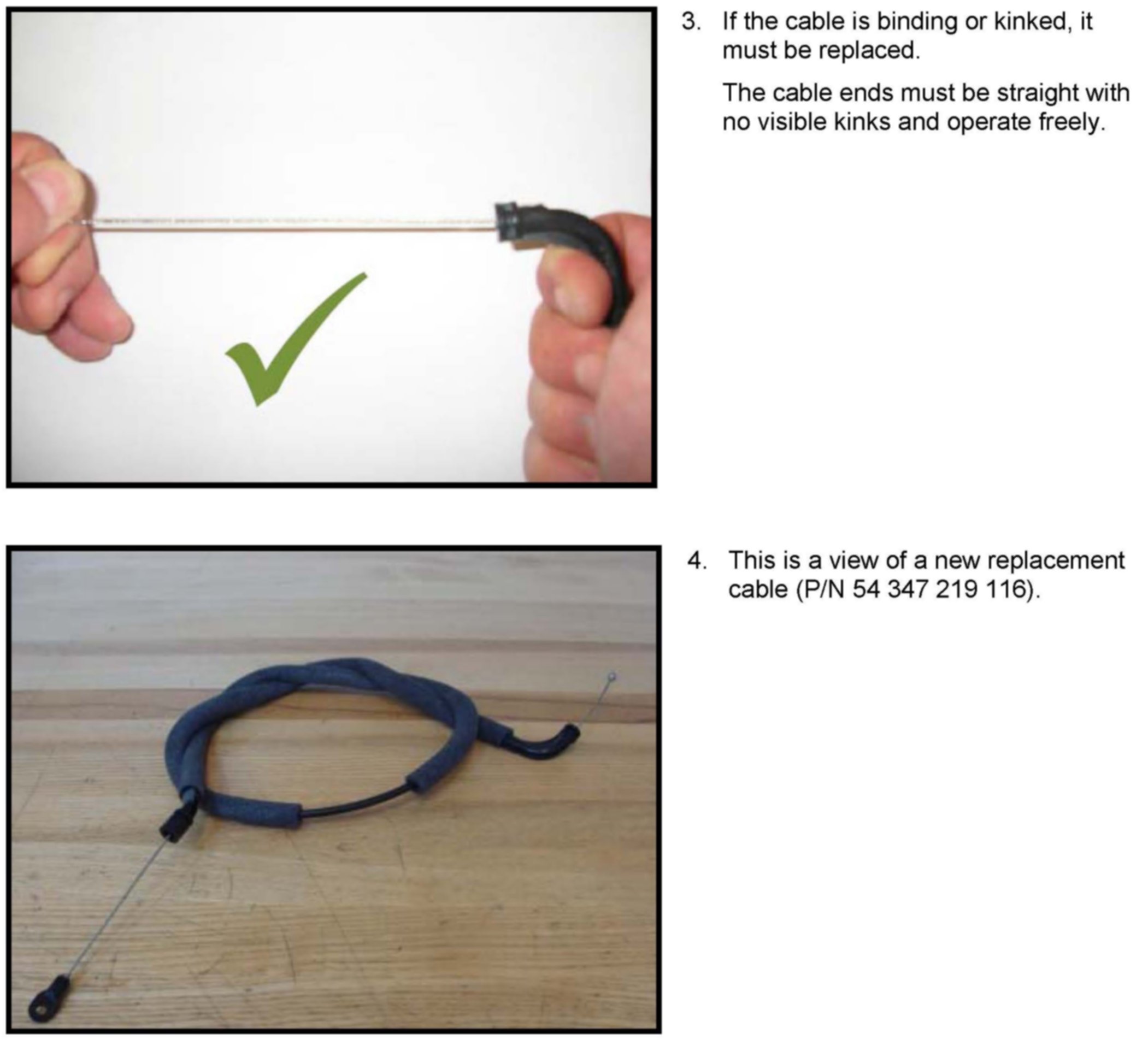

Refer to attachment B540810.
PARTS INFORMATION

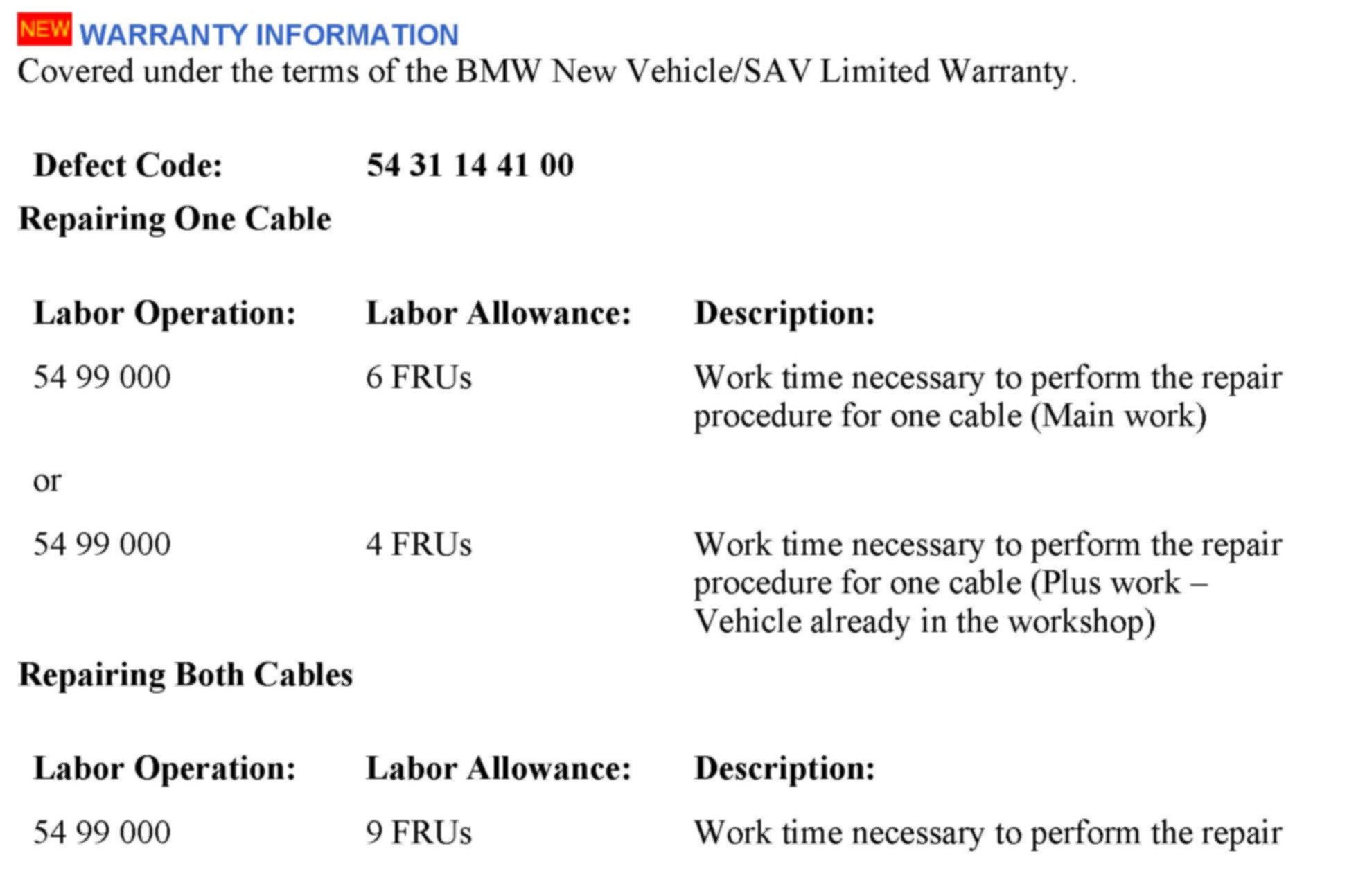

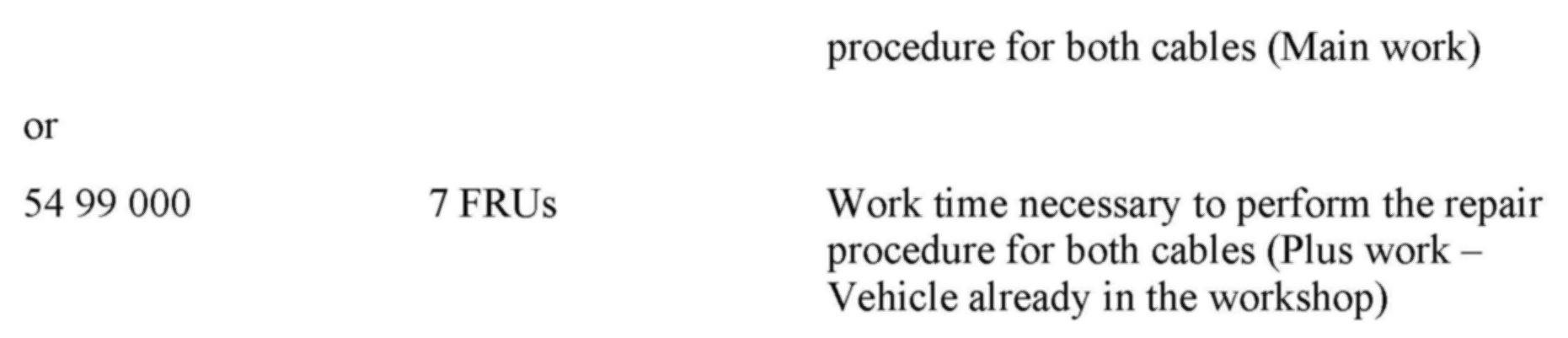

[NEW] WARRANTY INFORMATION
ATTACHMENTS

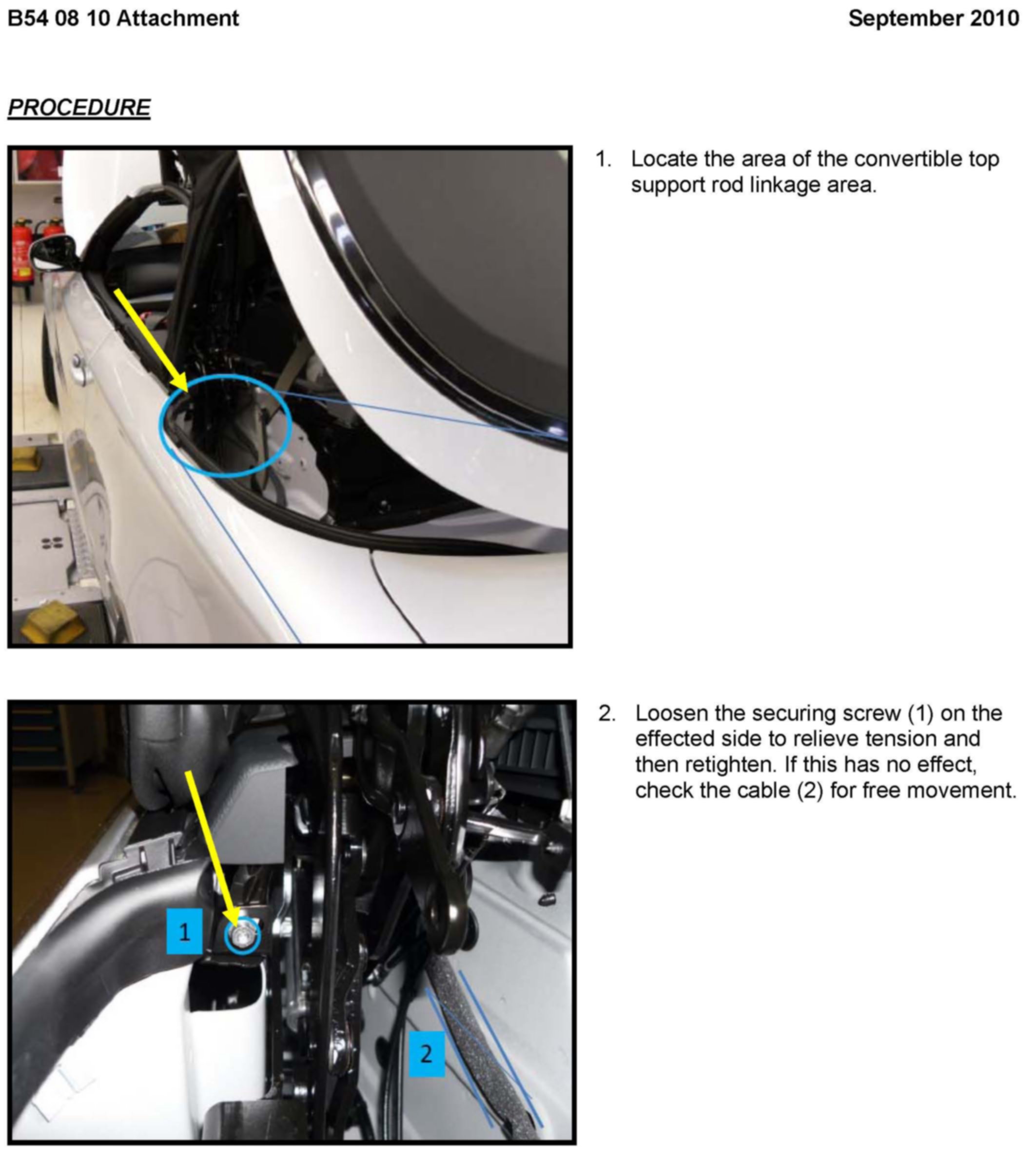

PROCEDURE
