Rear Shelf: Service and Repair

51 46 025 Removing And Installing/Replacing Cover On Ornamental Grille For Air Outlet







Special tools required:
- 00 9 323







Necessary preliminary work:
- If necessary, fold in soft top

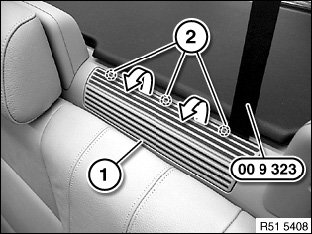

Lever out cover (1) on latch mechanisms (2) with special tool 00 9 323 and feed out towards rear.







Installation note:

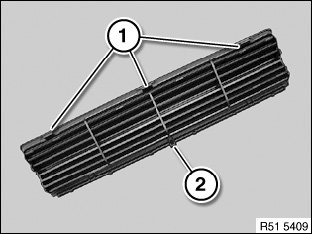

Latch mechanisms (1) and guide (2) on cover must not be damaged.
